1989 Pontiac Turbo Trans Am!

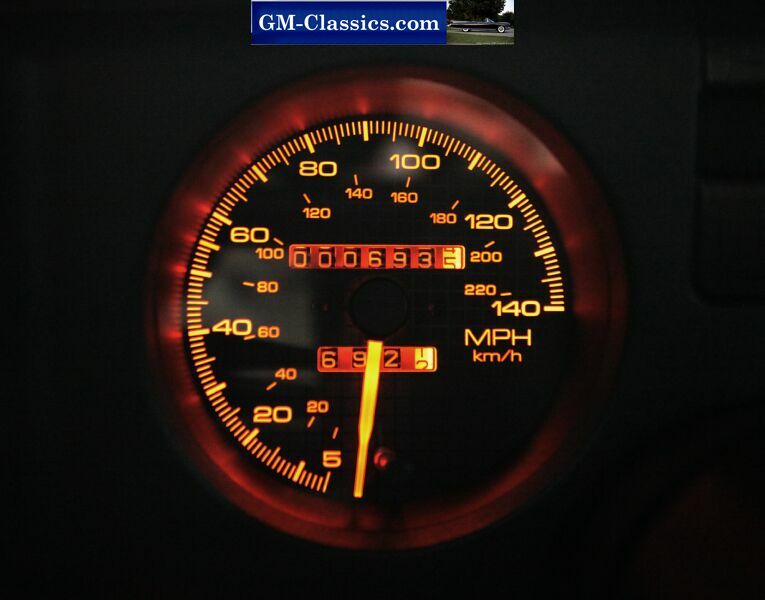

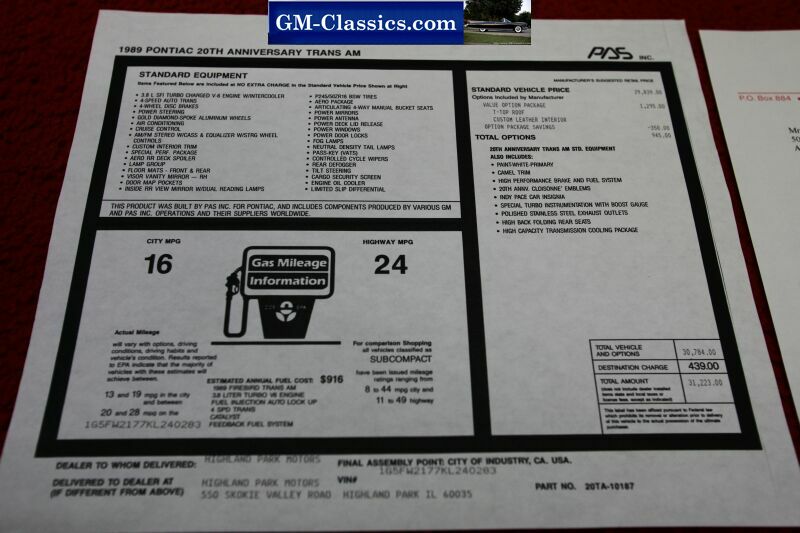

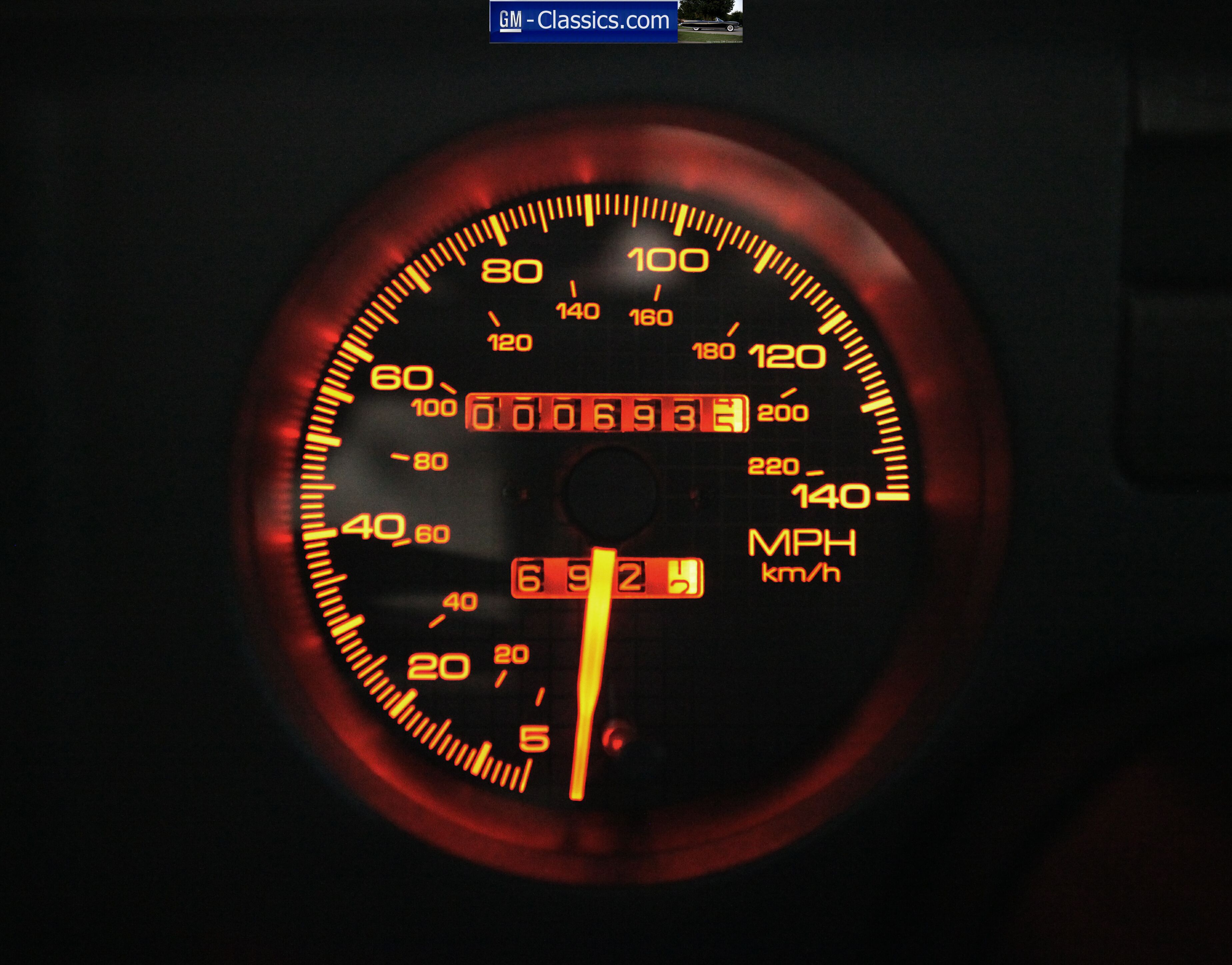

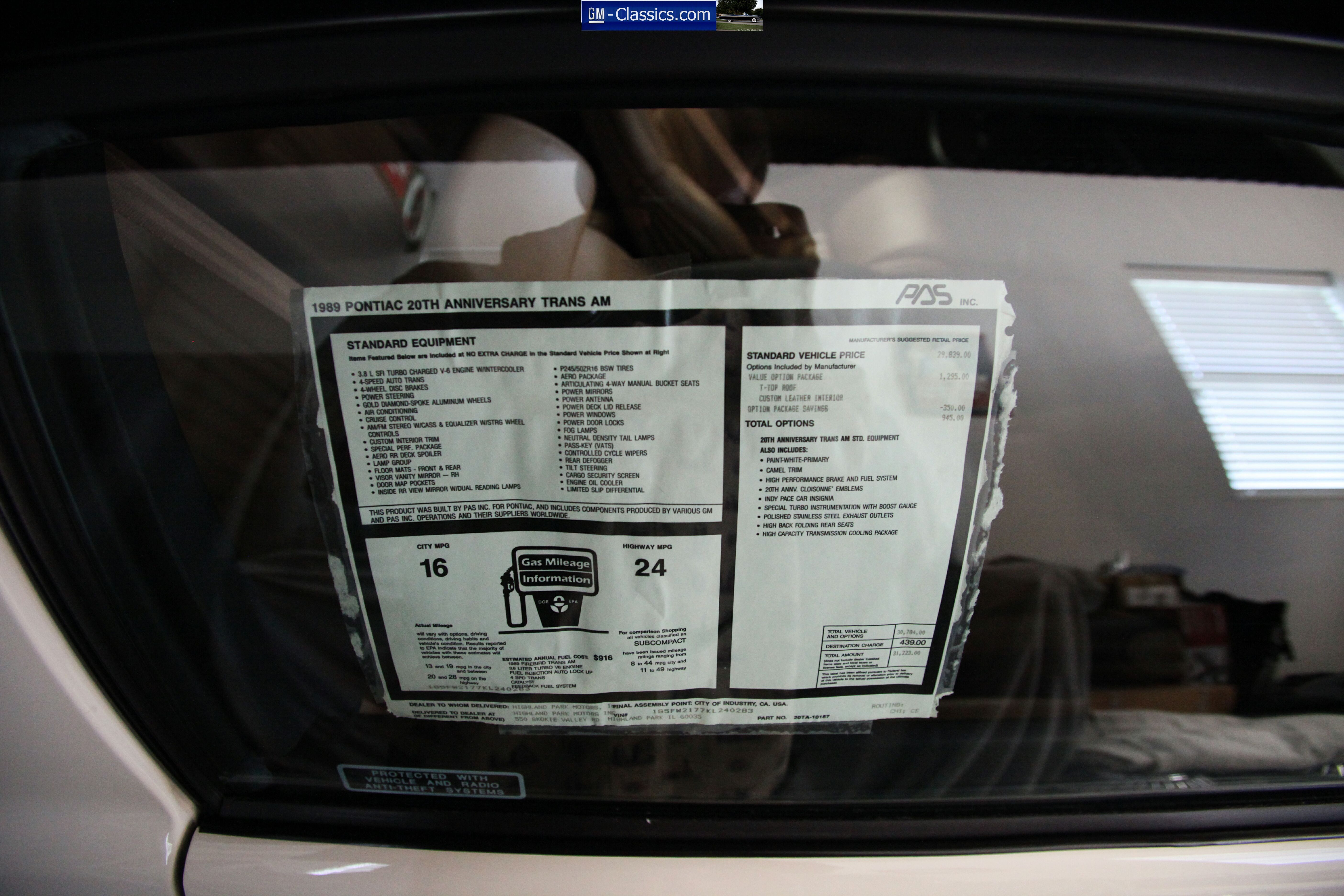

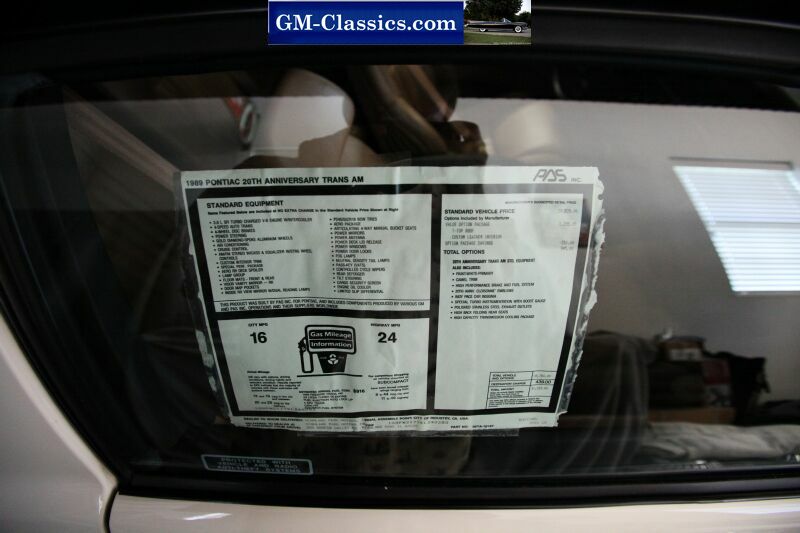

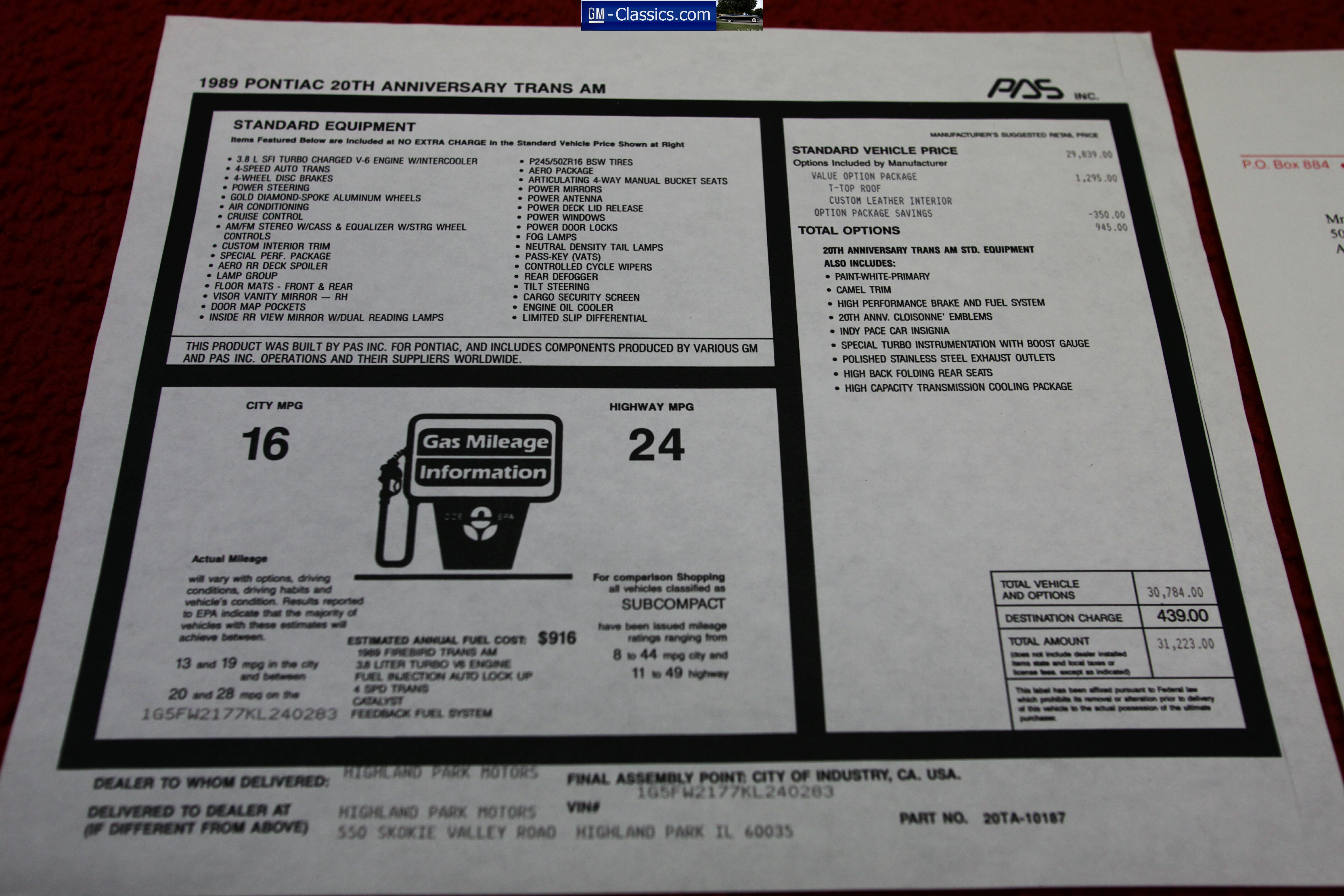

1989 Pontiac Turbo Trans Am, 3.8 SFI Turbo, Glass T-Tops, Leather. 680 Miles, Museum Quality new, Museum History, PMD. Car # 556. Other than being perfect, its just another one of the very many saved, put away, brand new TTAs. Just like the GNX, I dont think there will ever be a shortage of new ones of these, but when you start comparing those that are said to be new on intricate levels, this car will shine above and beyond. As good as it gets, brand new to the letter, belts, hoses, tires, window sticker on the car. No mods and certainly no fun has ever been had with this car besides the pleasure of preserving one of the best cars of the 80s. Multi Million dollar facility museum storage since new, best of the best.
Some General information on the TTA from: http://89tta.turbobuicks.net

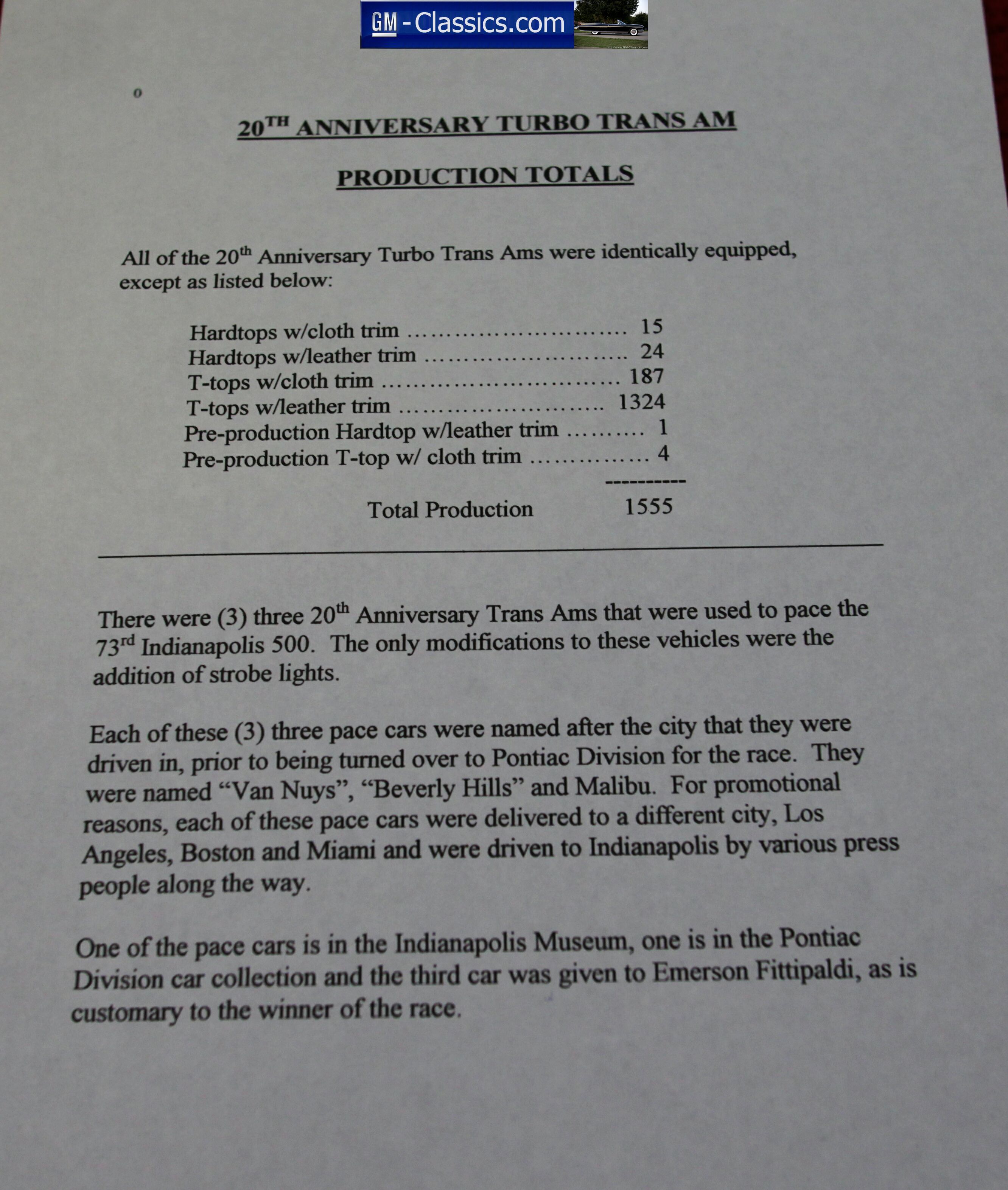

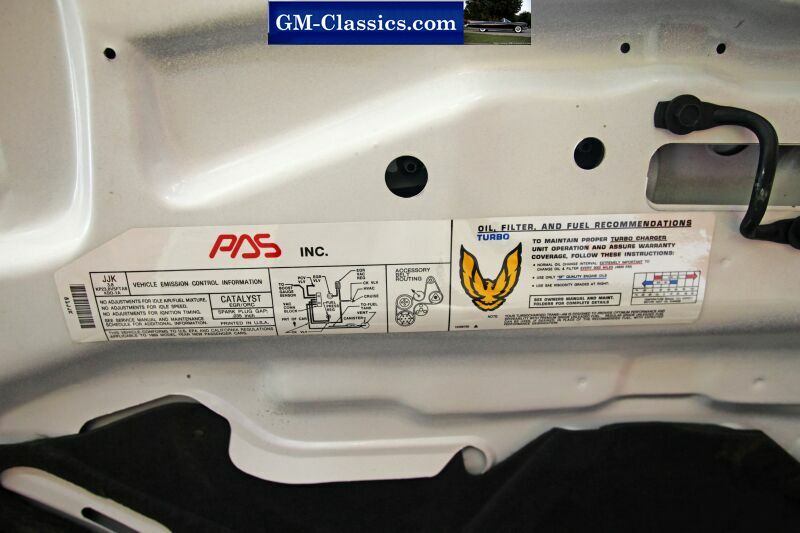

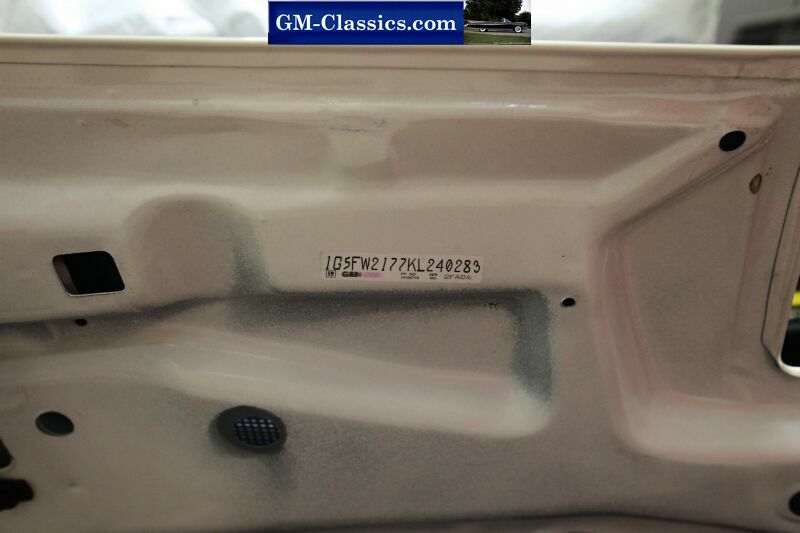

In 1989 Pontiac had really something special with the GTA, it was a great looking car and those that carried the 5.7 engine were something to really envy in the day. Beyond that 1550 cars known at the 20th Anniversary Turbo Trans Am were made. They were pretty much a GTA at first look, however under the hood had a very special Buick 3800 Engine with an intercooled turbocharger. Originally conceived by Bill Owen of Pontiac, the 20th Anniversary Turbo Trans Am project was outsourced to PAS, Inc., an engineering firm led by Jeff Beitzel. Beitzel and his team did most of the TTA development work. The V6 turbo engines were built by PAS at their 40,000 square foot City of Industry, CA plant. From there, they went to GM's plant in Van Nuys, CA to be installed into GTAs on the F-Body assembly line. The cars were then shipped back to PAS for final assembly, testing, and quality control. Incidentally, the GTA chassis were selected at random, thus there is no correlation between VIN number and production sequence number. The actual number of cars to be produced had ranged from 500 to 2,500 until GM finally settled on 1,500. In all, a total of 1,555 Turbo TAs were manufactured.
The 20th Anniversary Turbo Trans Am was offered as a complete package. Each
was white with saddle (tan) interior, with T-tops and leather interior the
only available options. Although other TAs were available with a CD player,
the Turbo TA was available only with a Delco ETR AM/FM cassette with graphic
EQ and redundant steering wheel controls.

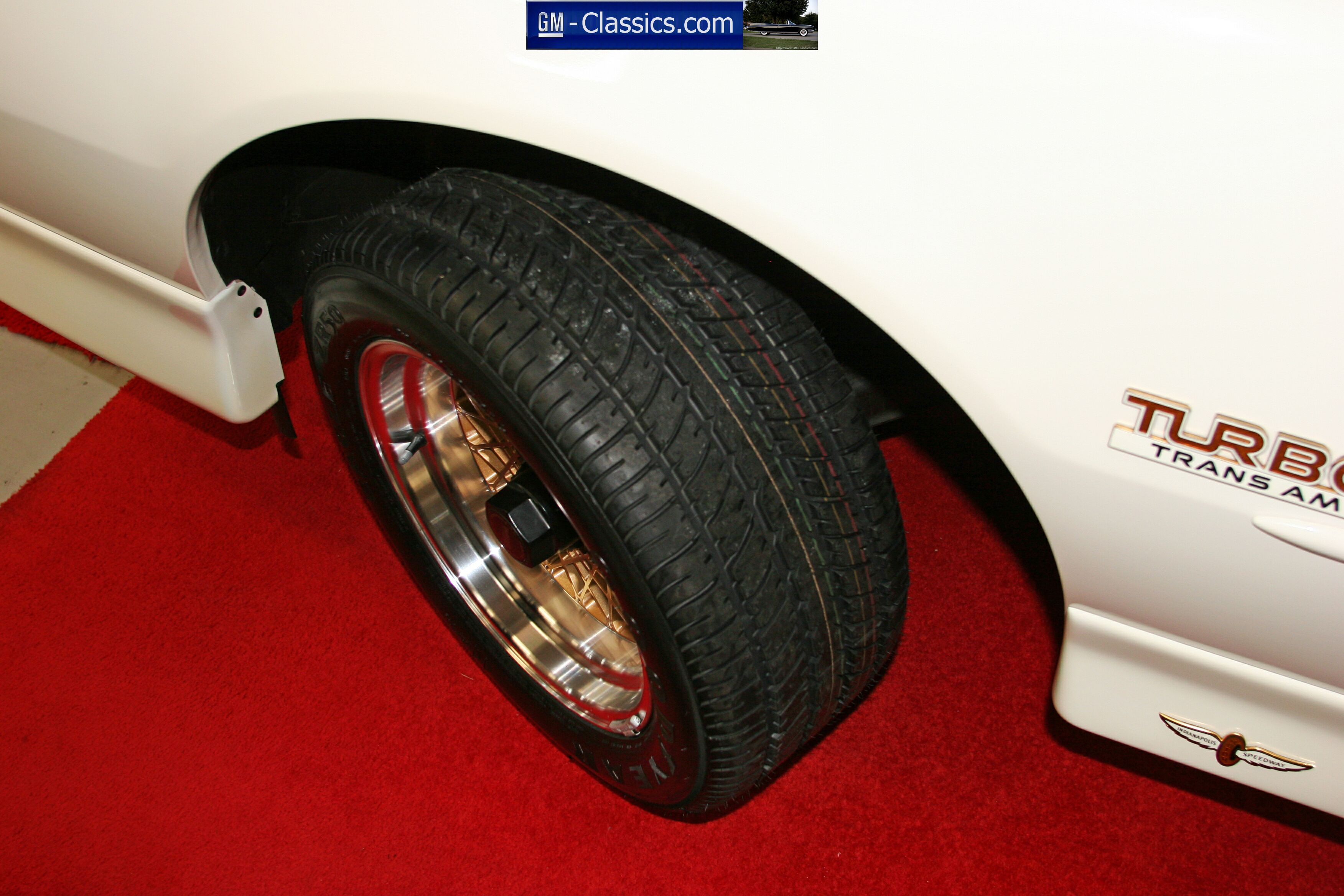

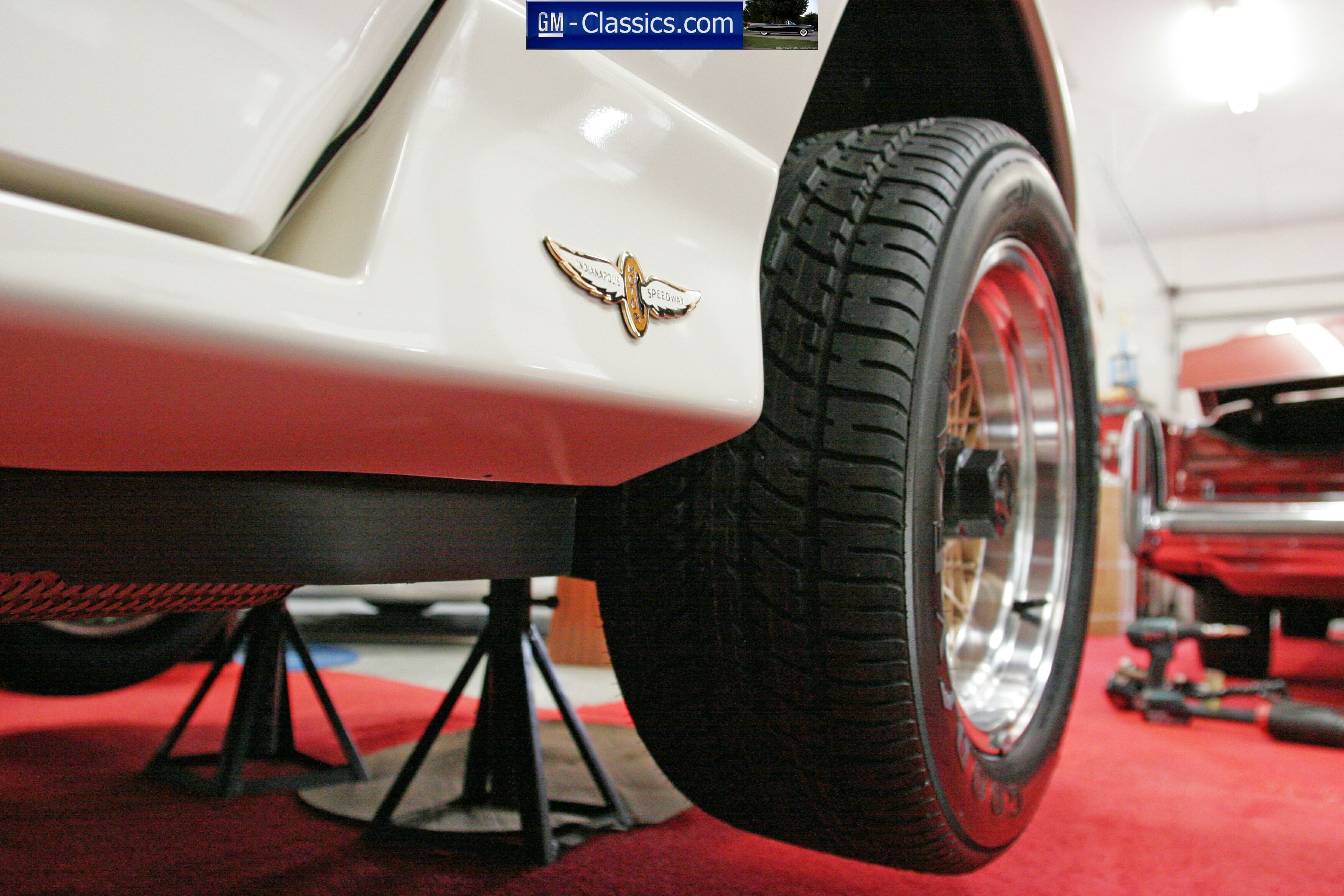

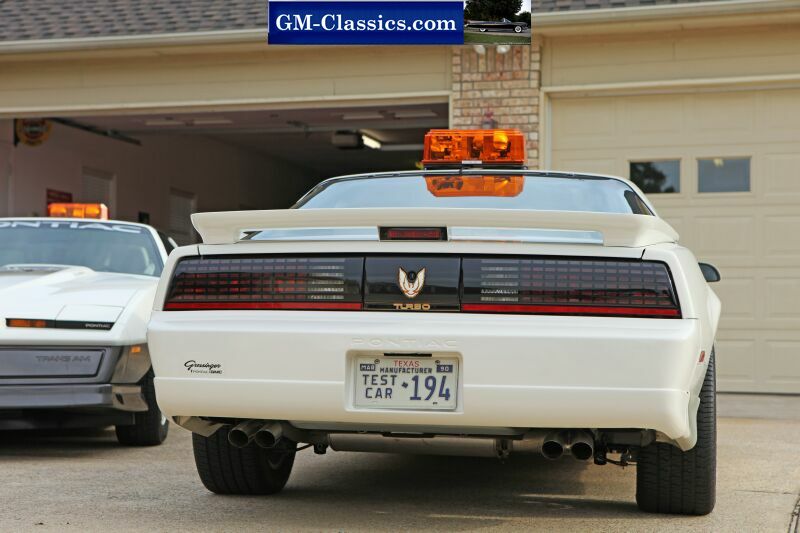

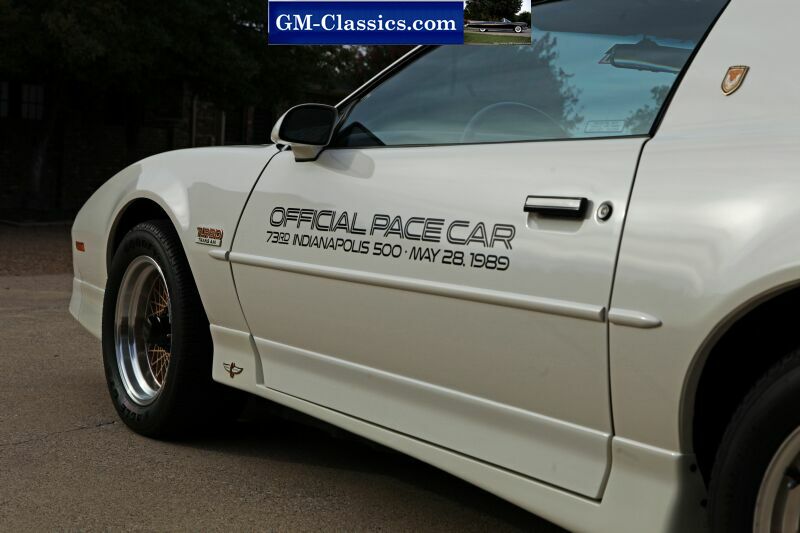

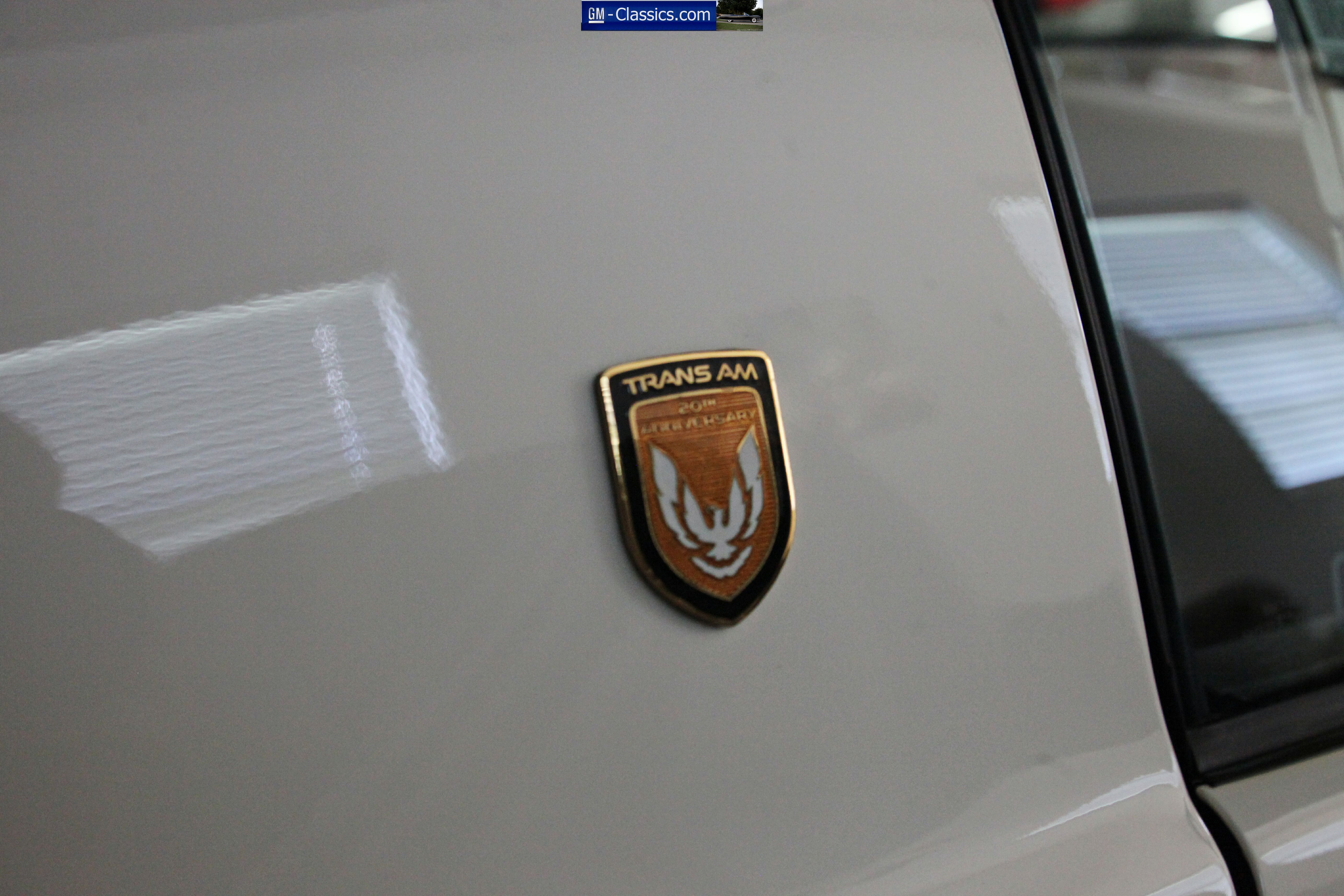

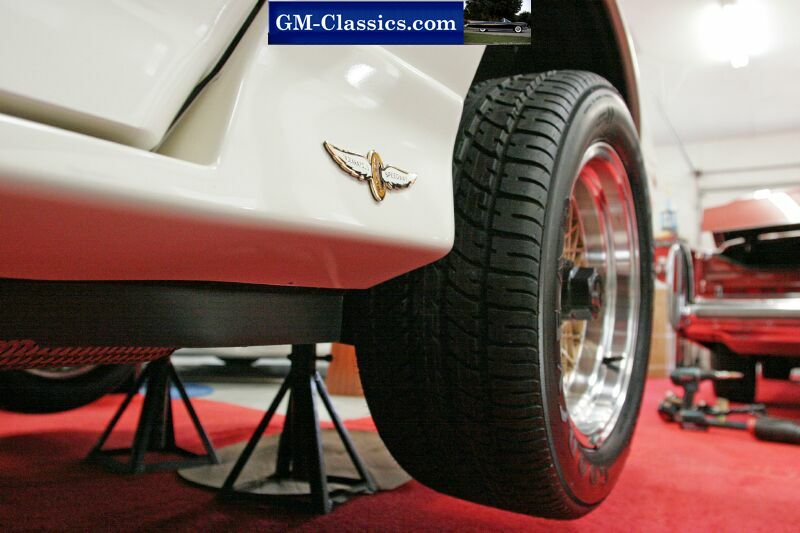

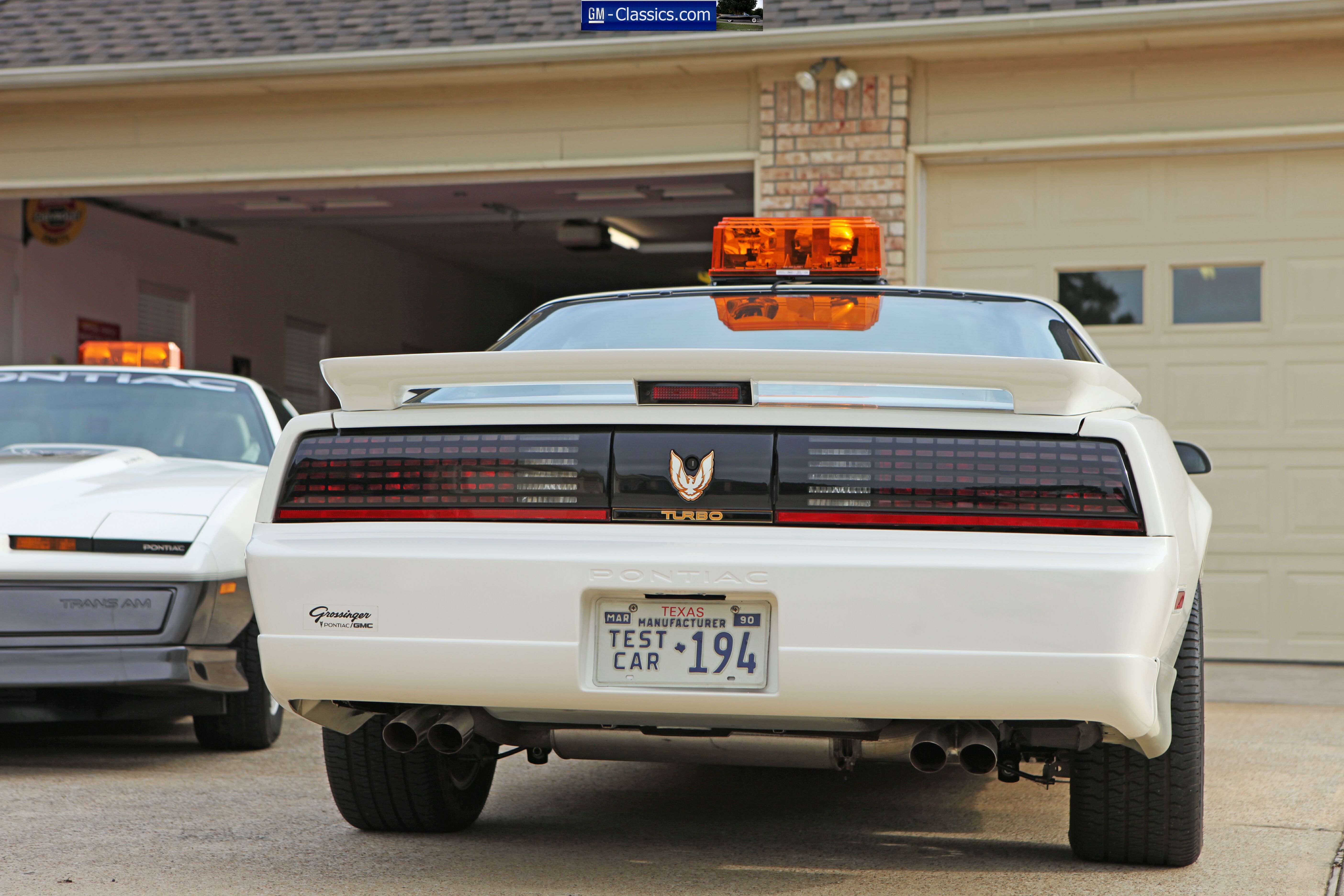

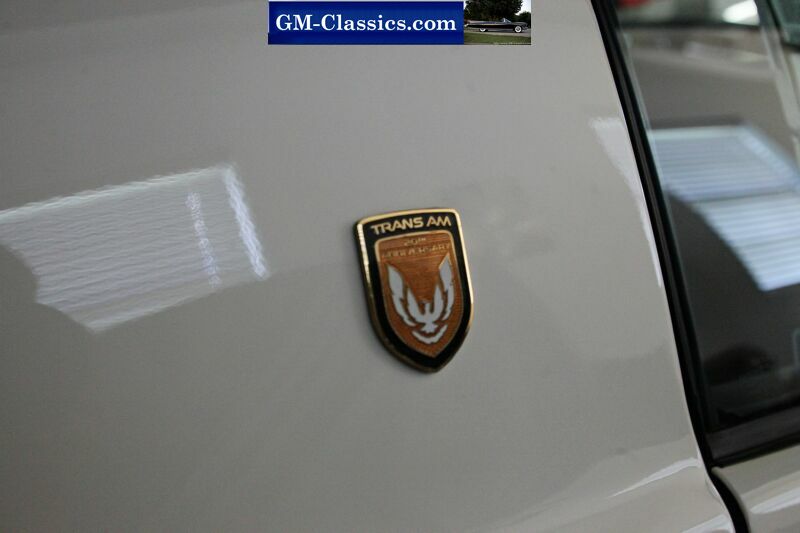

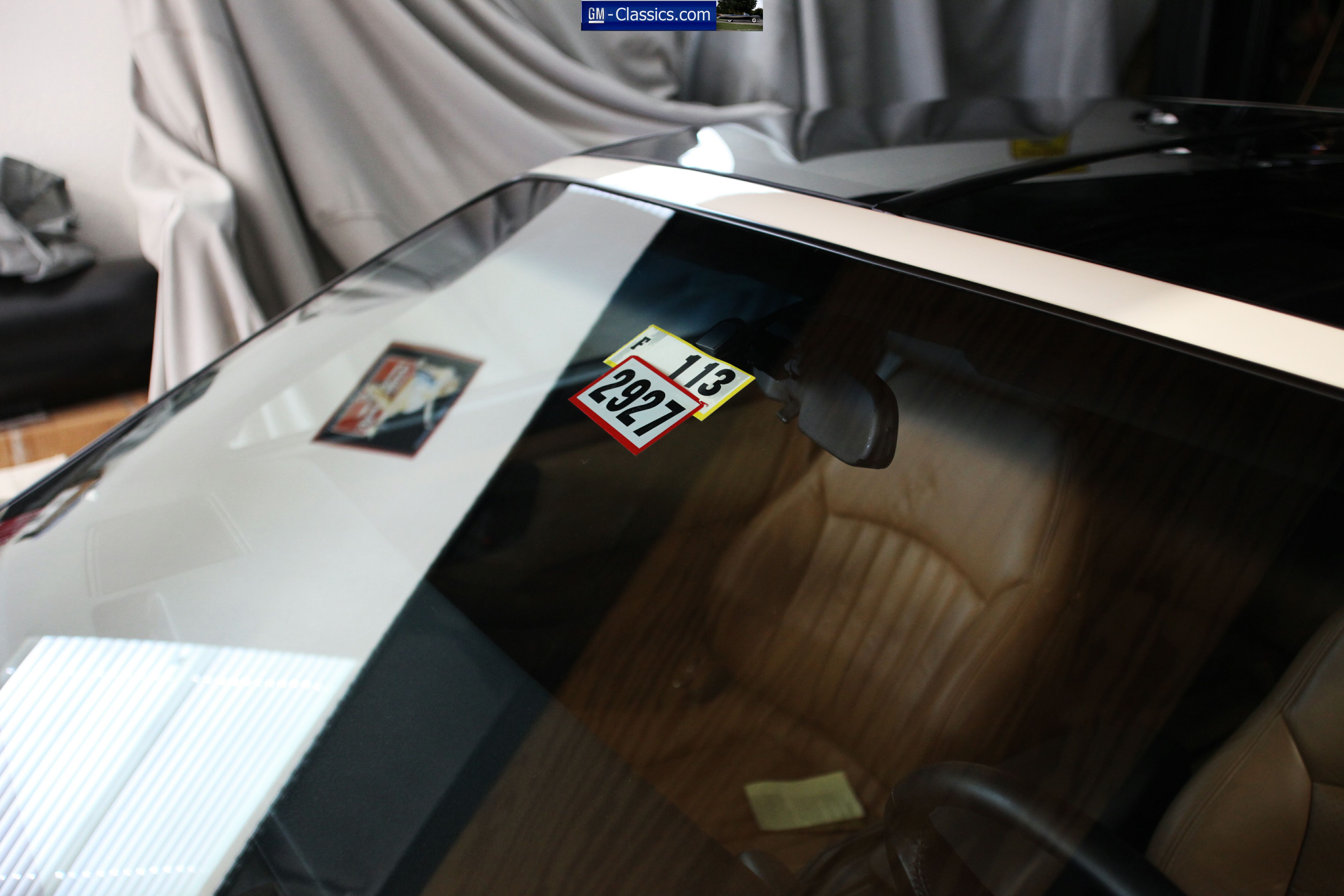

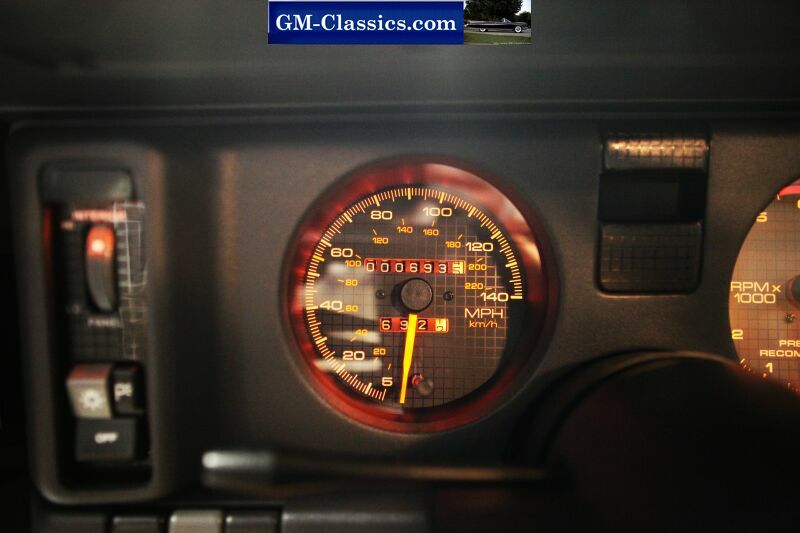

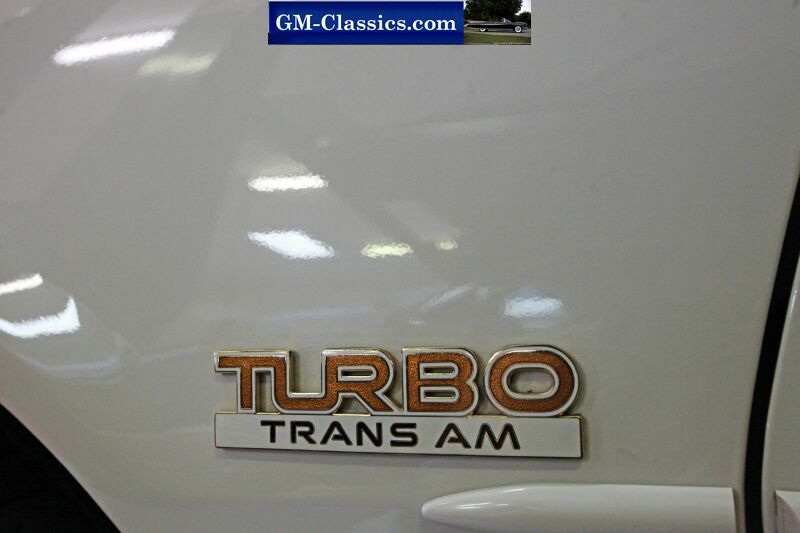

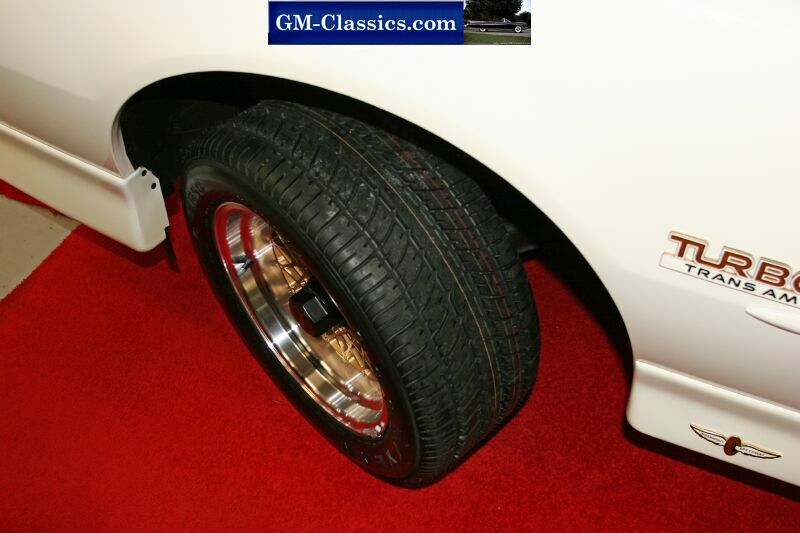

Externally, the TTA closely resembles a GTA. The primary visual clues are Indy "Winged Tire" emblems on the ground effects panel just aft of the front wheel wells, and dual twin stainless-steel exhaust tips. Closer inspection reveals "Turbo" emblems on the front fenders, "20th Anniversary" emblems on the nose and B-pillar, and a "Turbo" insignia between the taillights. Inside, a turbo boost gauge is incorporated into the tachometer face, and there is a "20th Anniversary" logo on the leather map pocket. Special Indy Pace Car stickers were supplied for the windshield and doors. The cars were delivered without the stickers attached - it was up to the individual owner to apply them if desired.

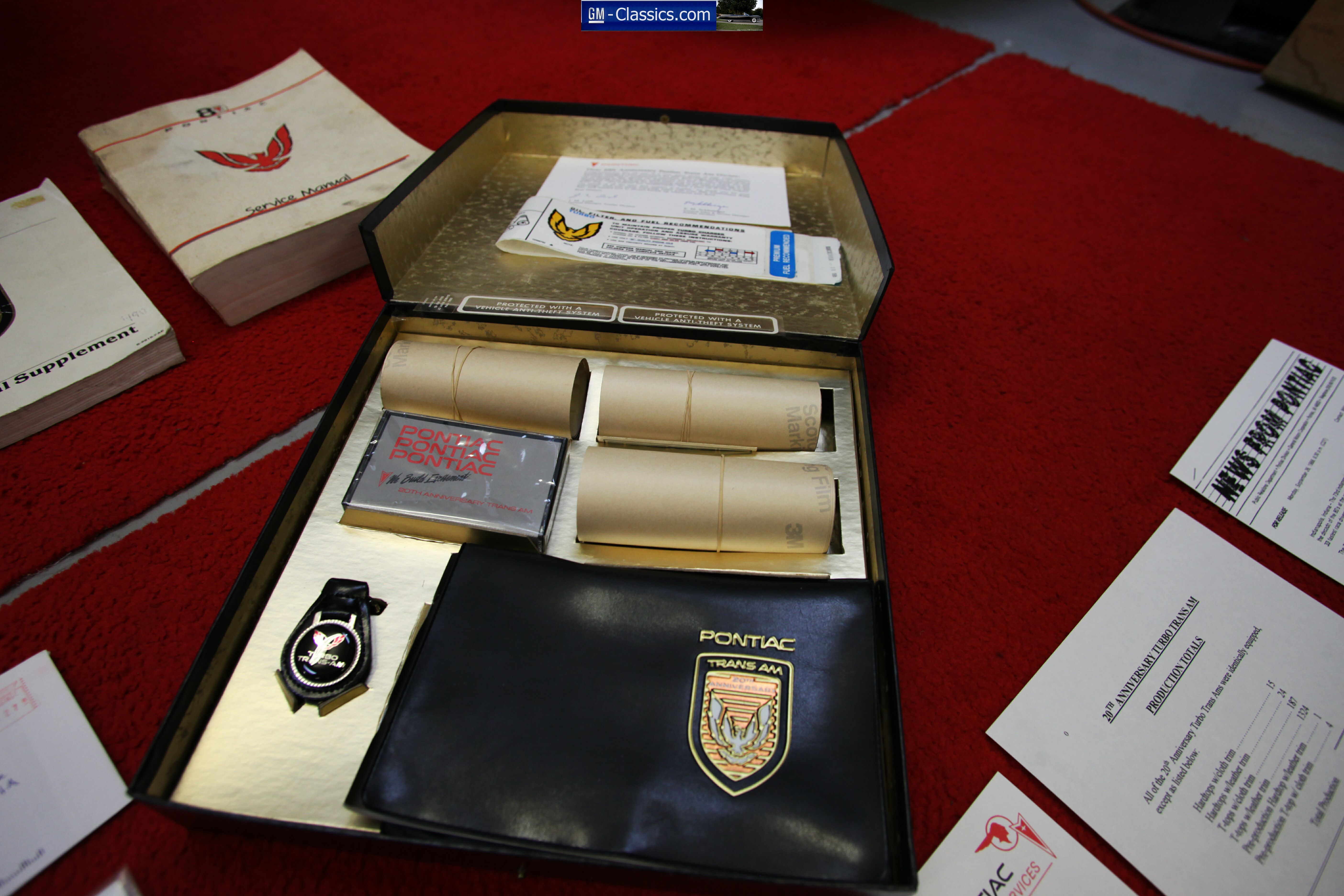

Original Turbo TA owners were sent a special box containing the door and windshield stickers, a Turbo TA keychain, cassette tape, letter of congratulations and a leather owners manual cover. There is a unique owners manual supplement that came with the car.

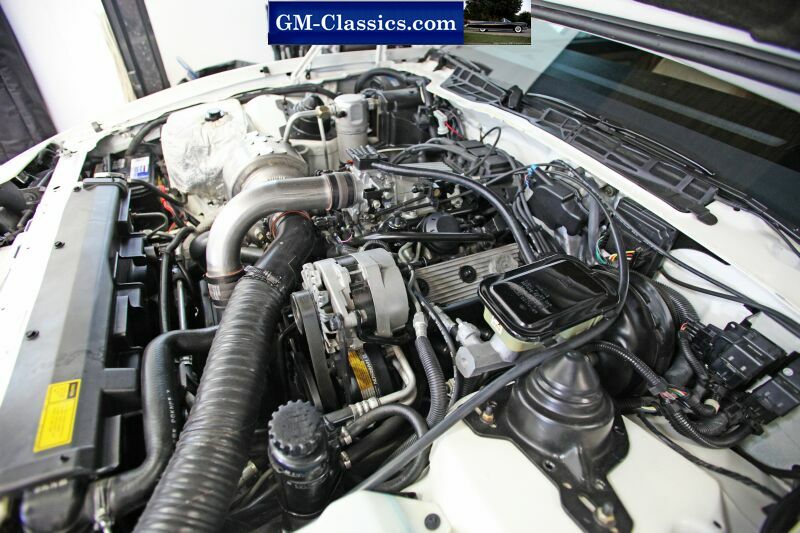

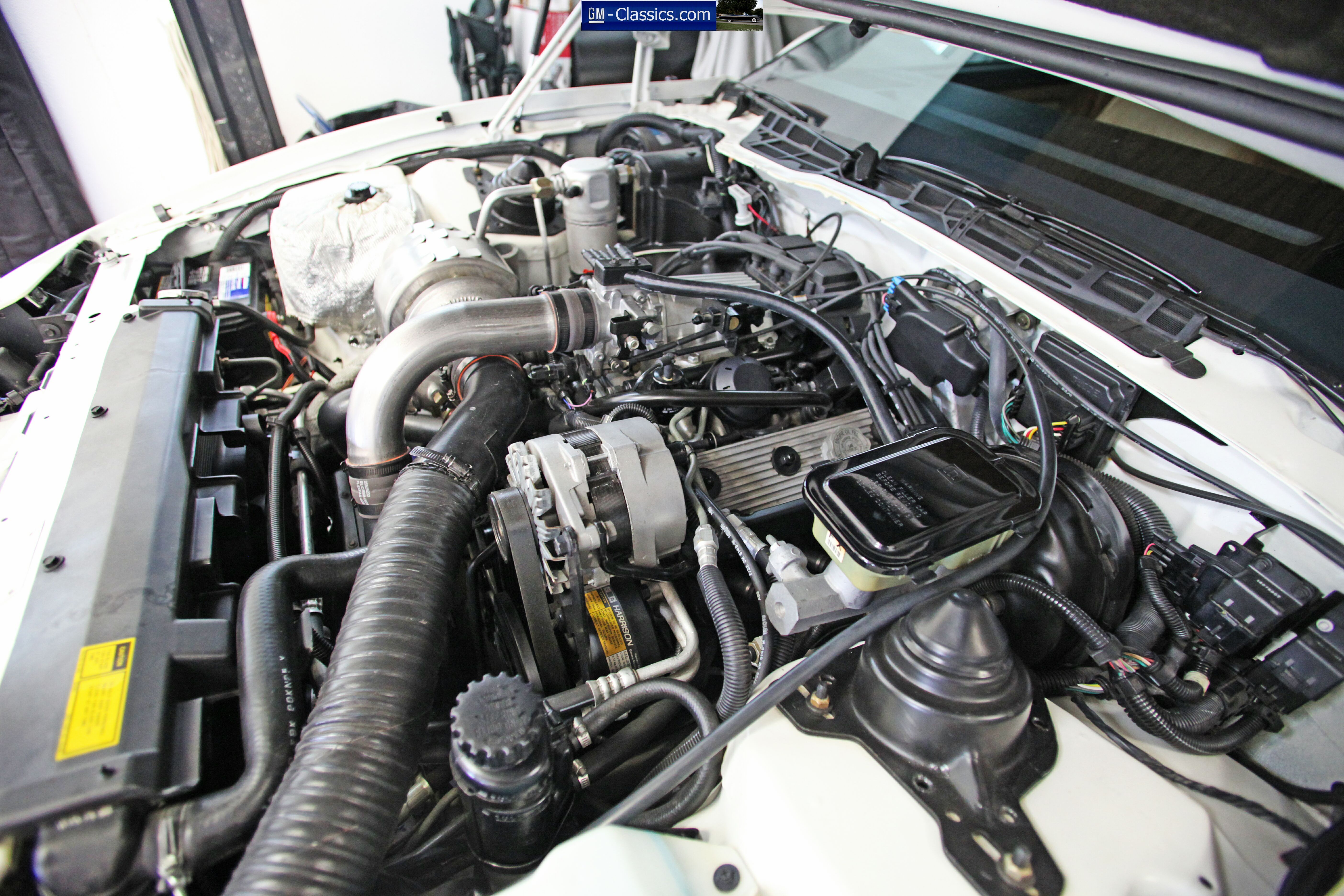

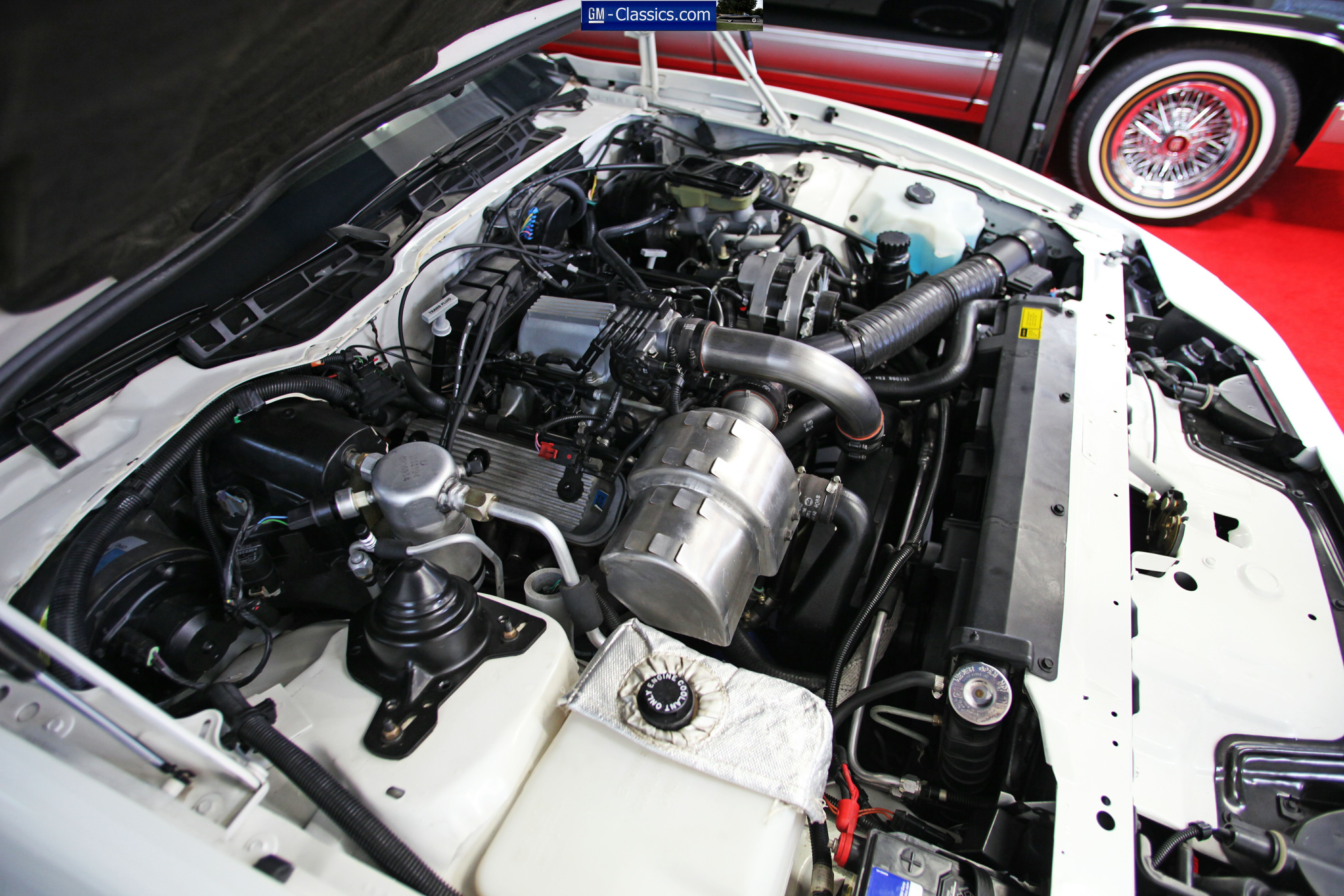

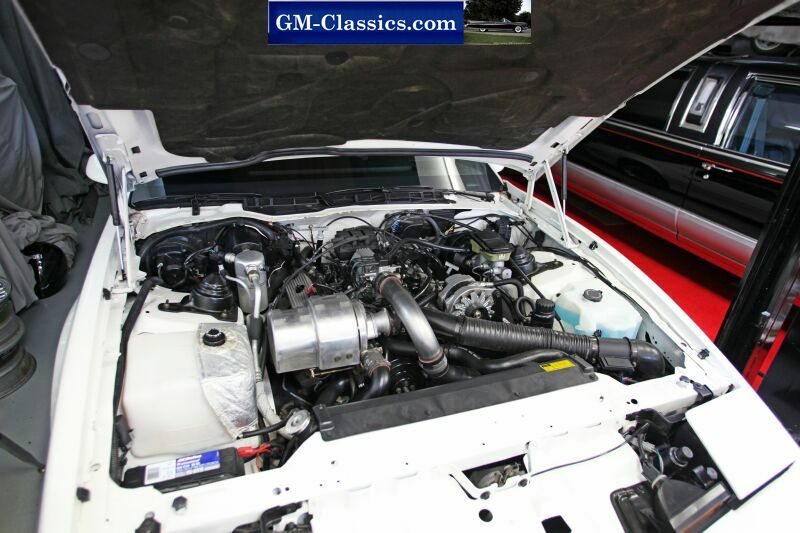

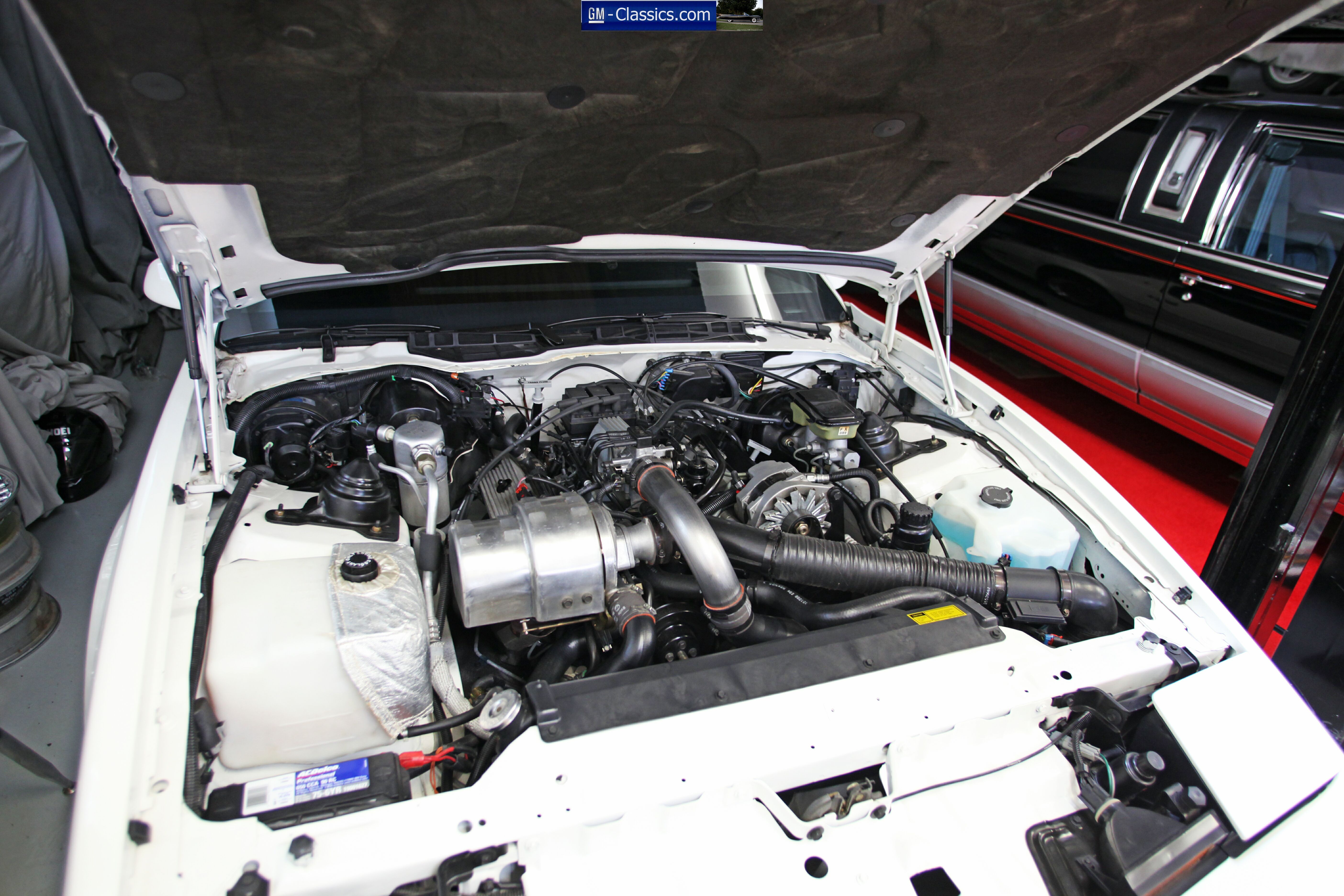

What makes the 20th Anniversary Turbo TA so special is that it is a complete
mechanical package, and not just some tape stripes. Starting with the
engine, Pontiac borrowed Buick's 3.8 liter (231cid) V6 turbo powerplant from
the fabled 1986-87 Grand National. Some difference exist between the TTA
motor and the GN version.Different
necessary in order to squeeze the motor between the strut towers. These
heads, adapted from the transverse FWD version of the 3.8 liter motor, have
the added benefit of improved exhaust flow and combustion chamber design.
Subsequently, different pistons were required in order to maintain
combustion chamber volume. Other changes to the TTA motor are a cross-drilled

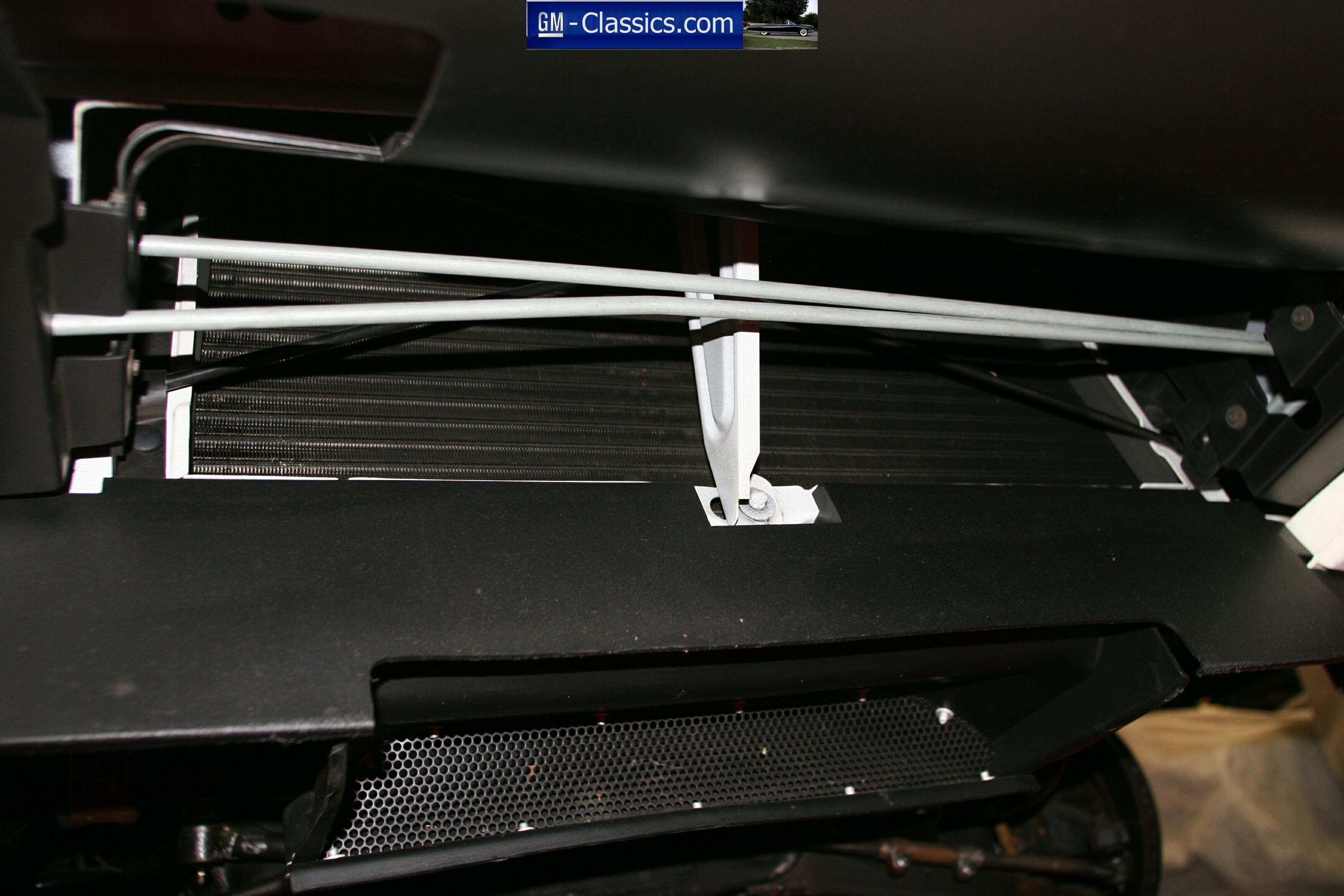

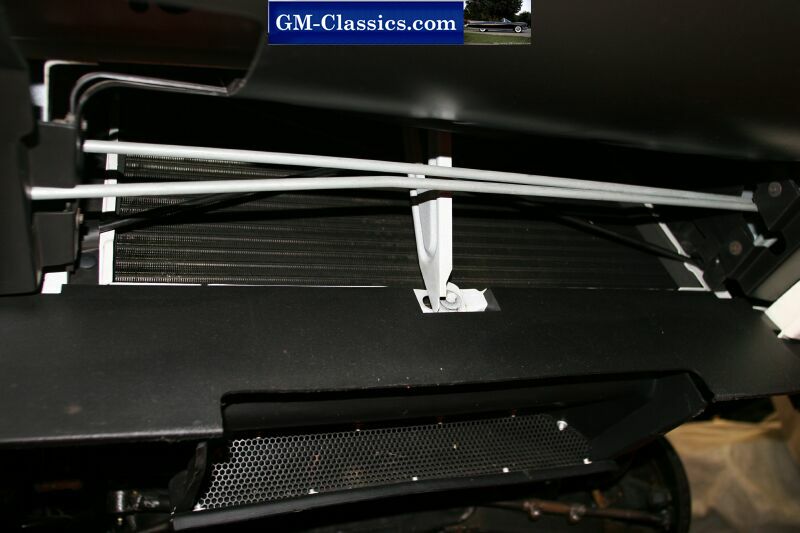

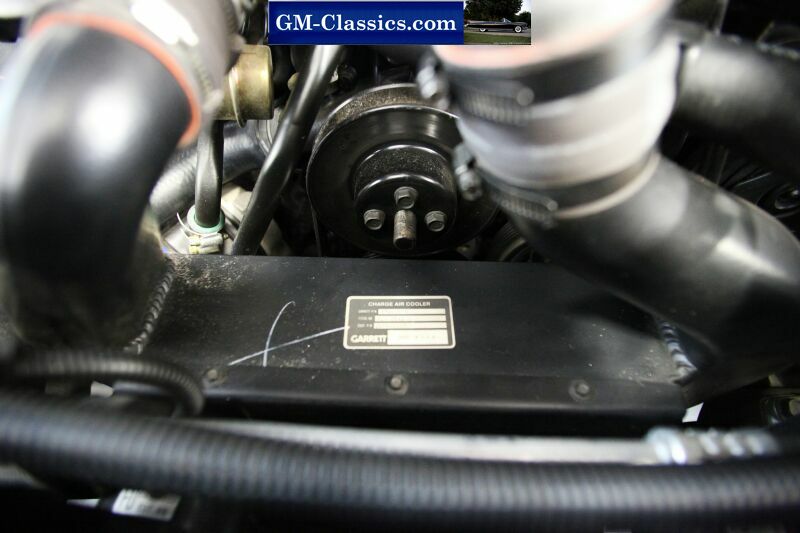

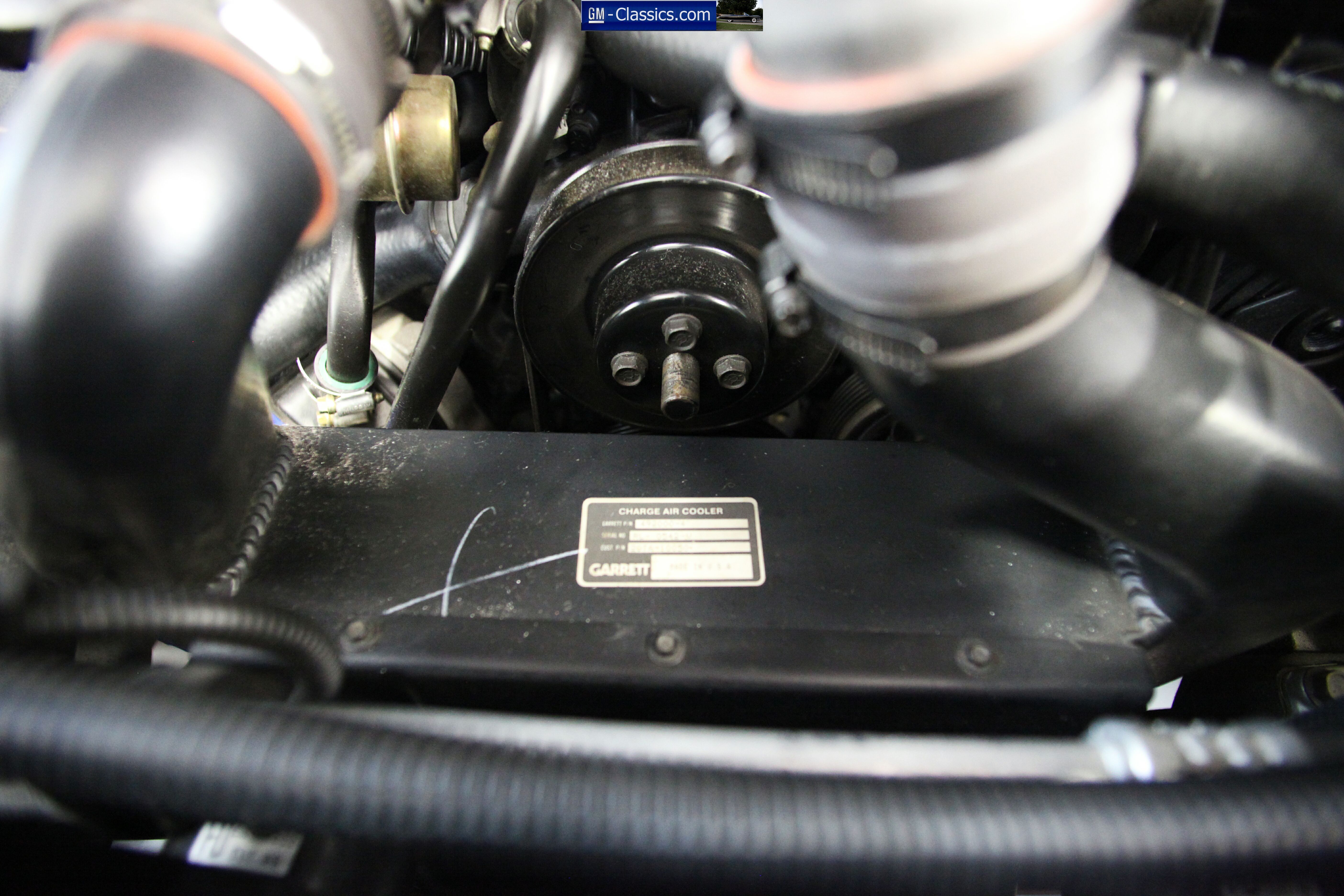

larger 12 fin/inch GNX-style
place of the GN's 10 fin/inch design, specially-designed stainless-steel
higher-pressure Bosch 237 fuel pressure regulator, and a recalibrated engine
Mark Grable, writing in the March 1989 Motor Trend, noted the Turbo Trans Am's "250 horses...seem much stronger than run-of-the-mill horses." The reason is simple. Although Pontiac officially rated the engine at 250 HP, in reality it developed an honest 301 HP on the GM dyno.

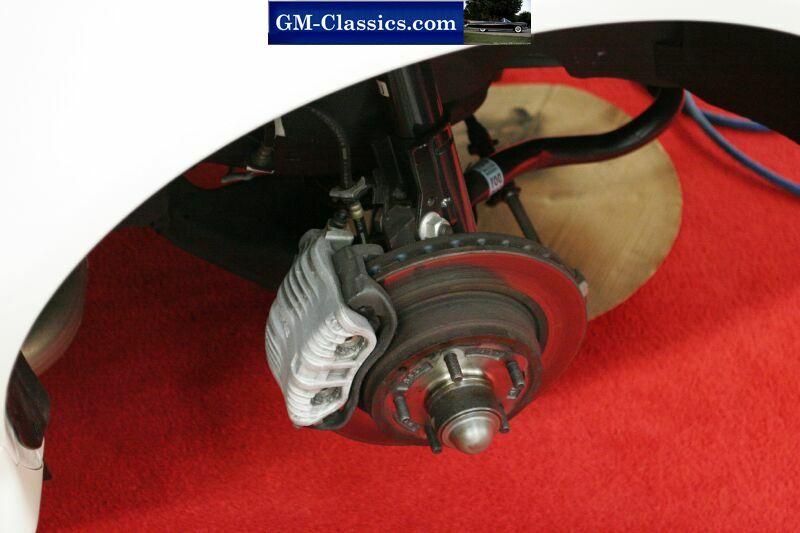

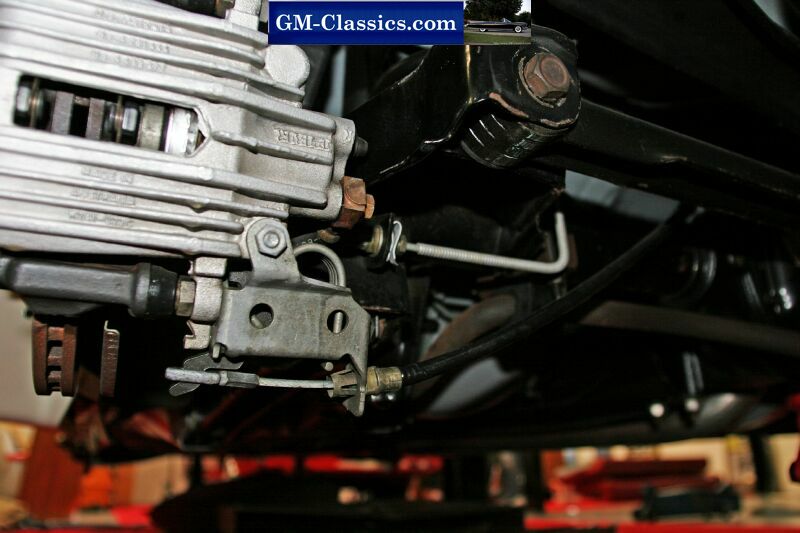

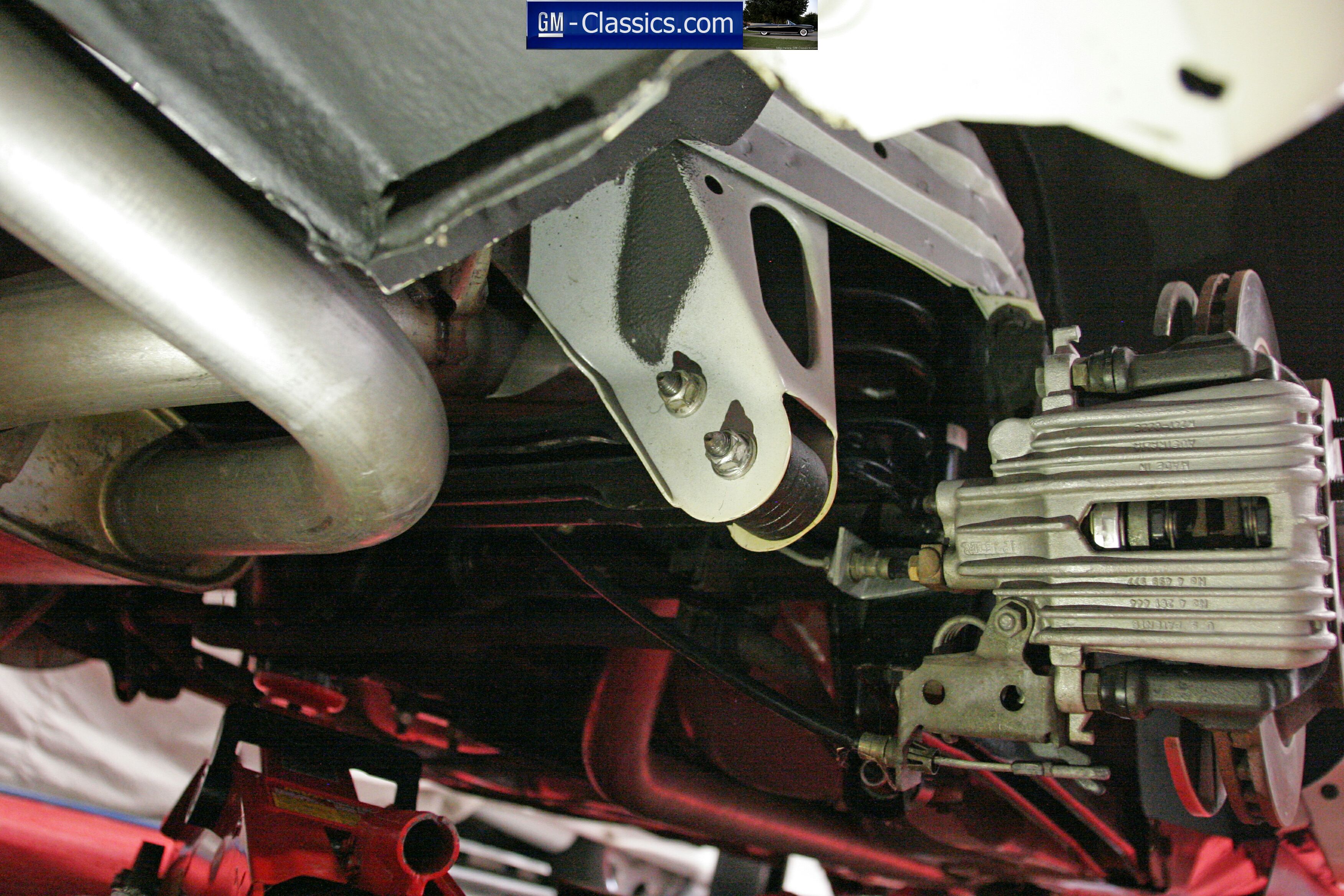

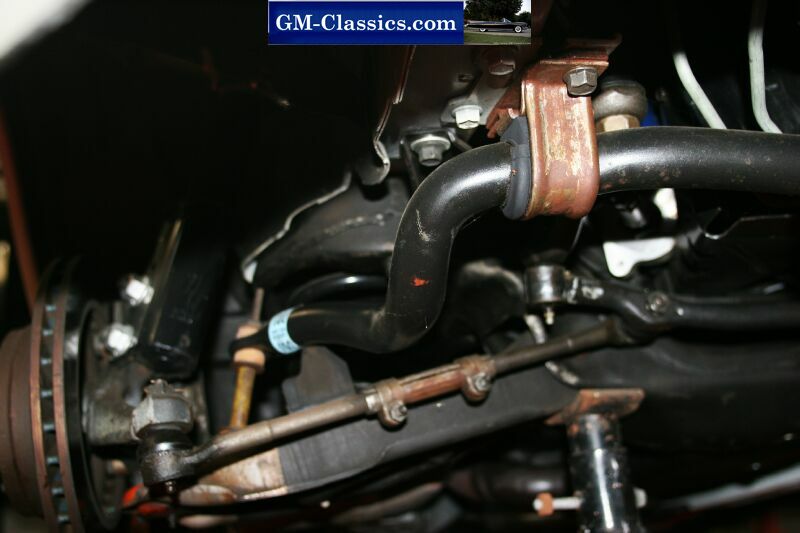

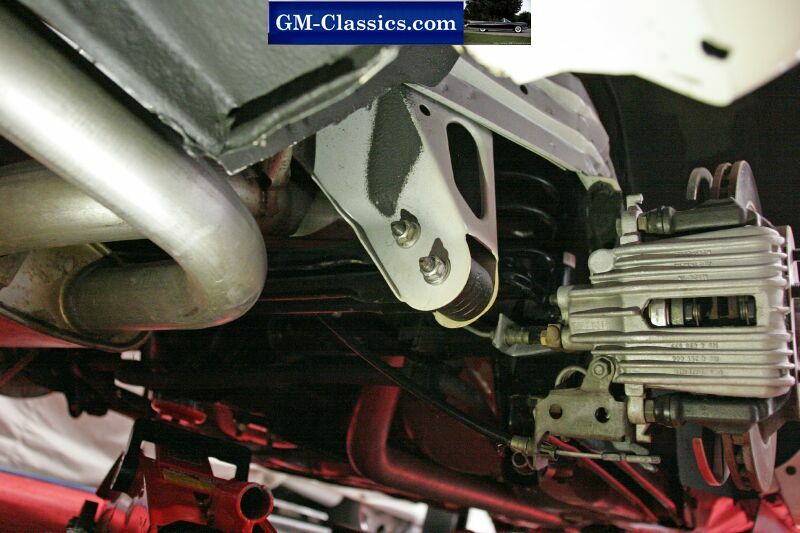

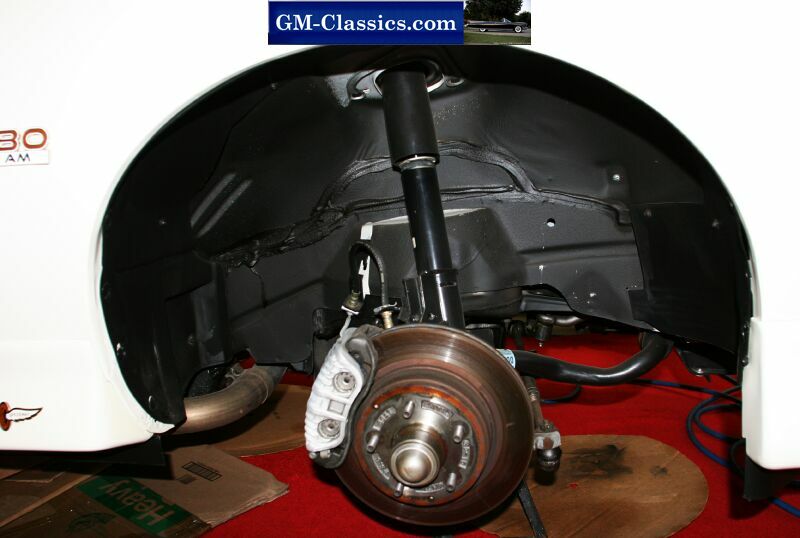

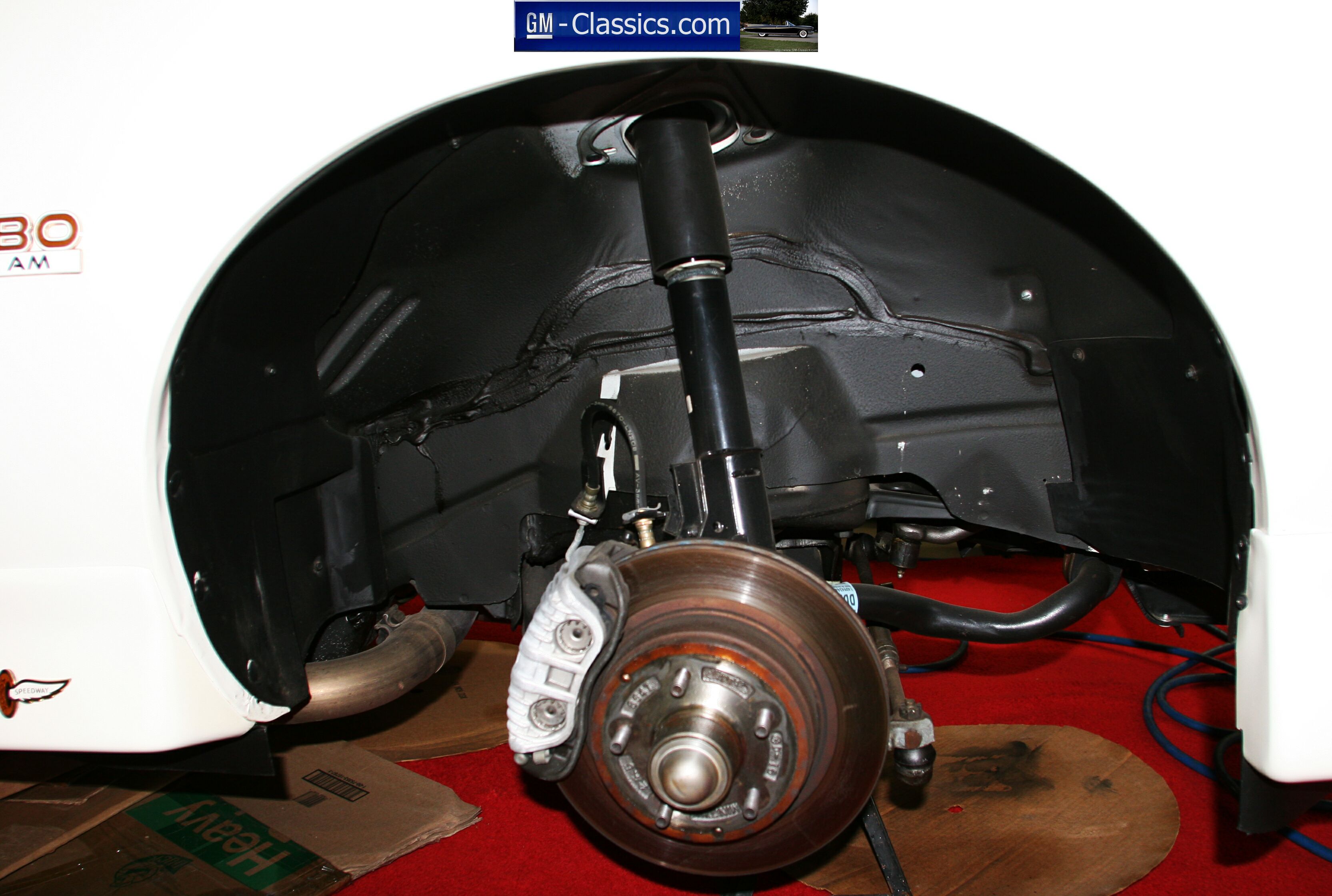

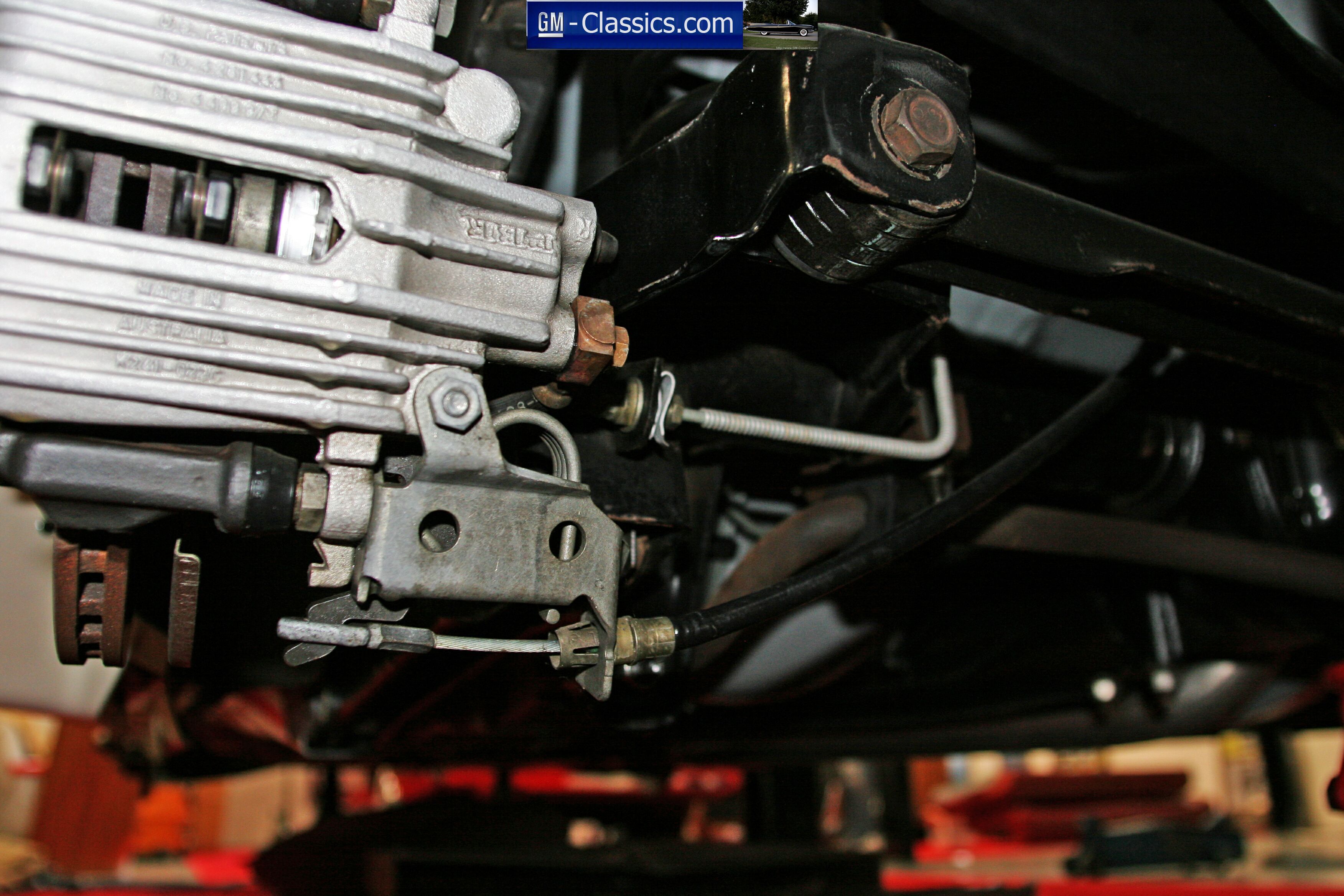

The Turbo TA came with the rare 1LE racing brake package, which upgrades the front discs to 12 inch police rotors, Corvette twin piston aluminum calipers and semi-metallic pads. These brakes are virtually fade proof, and were installed to legalize the 1LE package for Firehawk endurance racing. The rear discs were also increased to 12 inches in 1989 and use Corvette single piston calipers. All of the brakes on the car are of a quick change design, and pads can actually be changed in 30 seconds.
The only mid-year change made to the Turbo TA during the entire production run was a redesigned turbo inlet tube. The redesigned plastic tube was more durable, and had a clamping rib on either end to keep the hoses attached more securely. Other production changes in 1989 affected the Turbo TA and F-bodies in general. As an example, in March 1989 GM switched from glass to Lexan T-tops in order to save weight. However, the Lexan tops had severe problems with scratching and cracking, and GM had to replace most of them under warranty. During the 1990 production run GM switched back to glass T-tops after having so many problems with the Lexan ones.
More to come
CLICK ANY PHOTO FOR AN EXTREME BLOW UP!

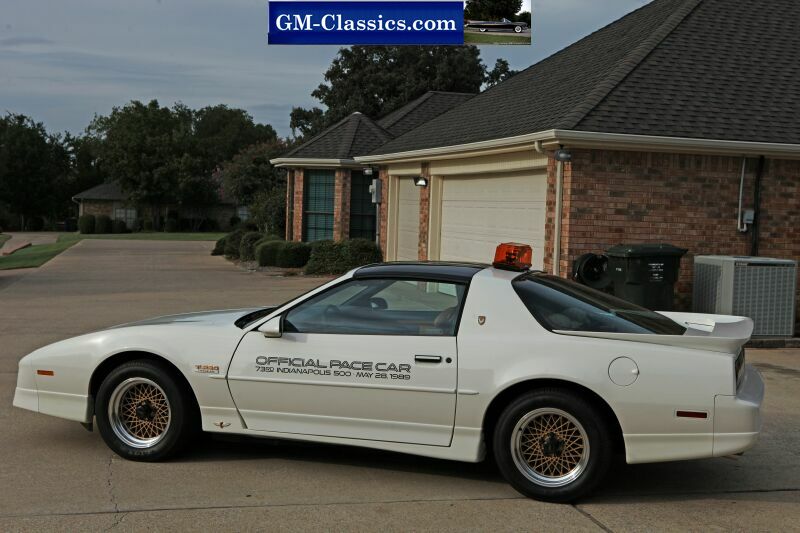

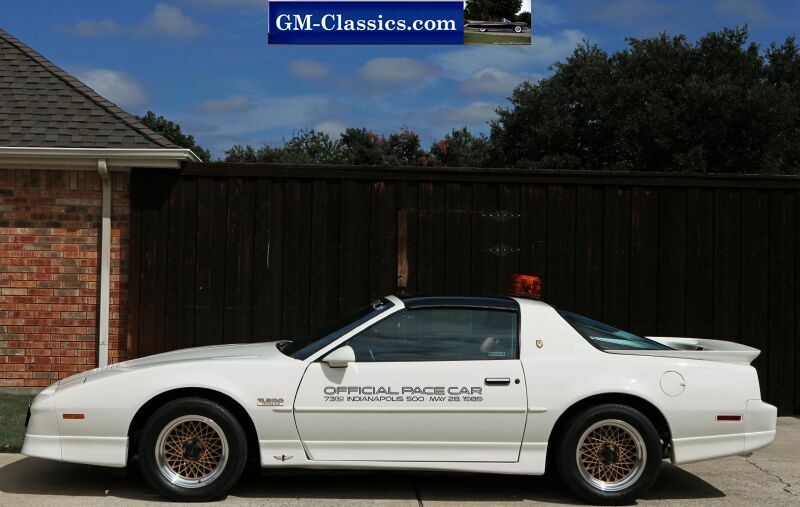

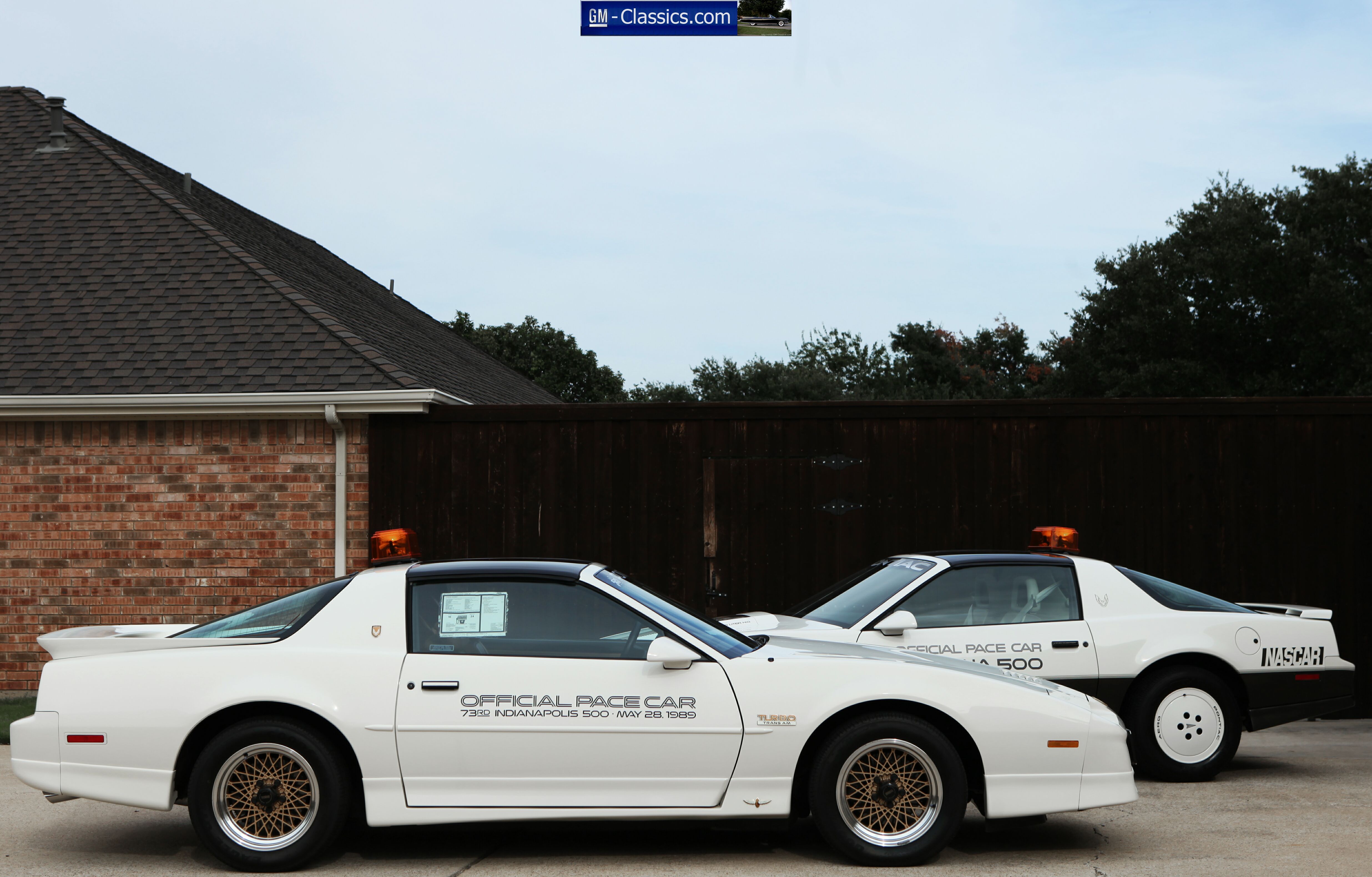

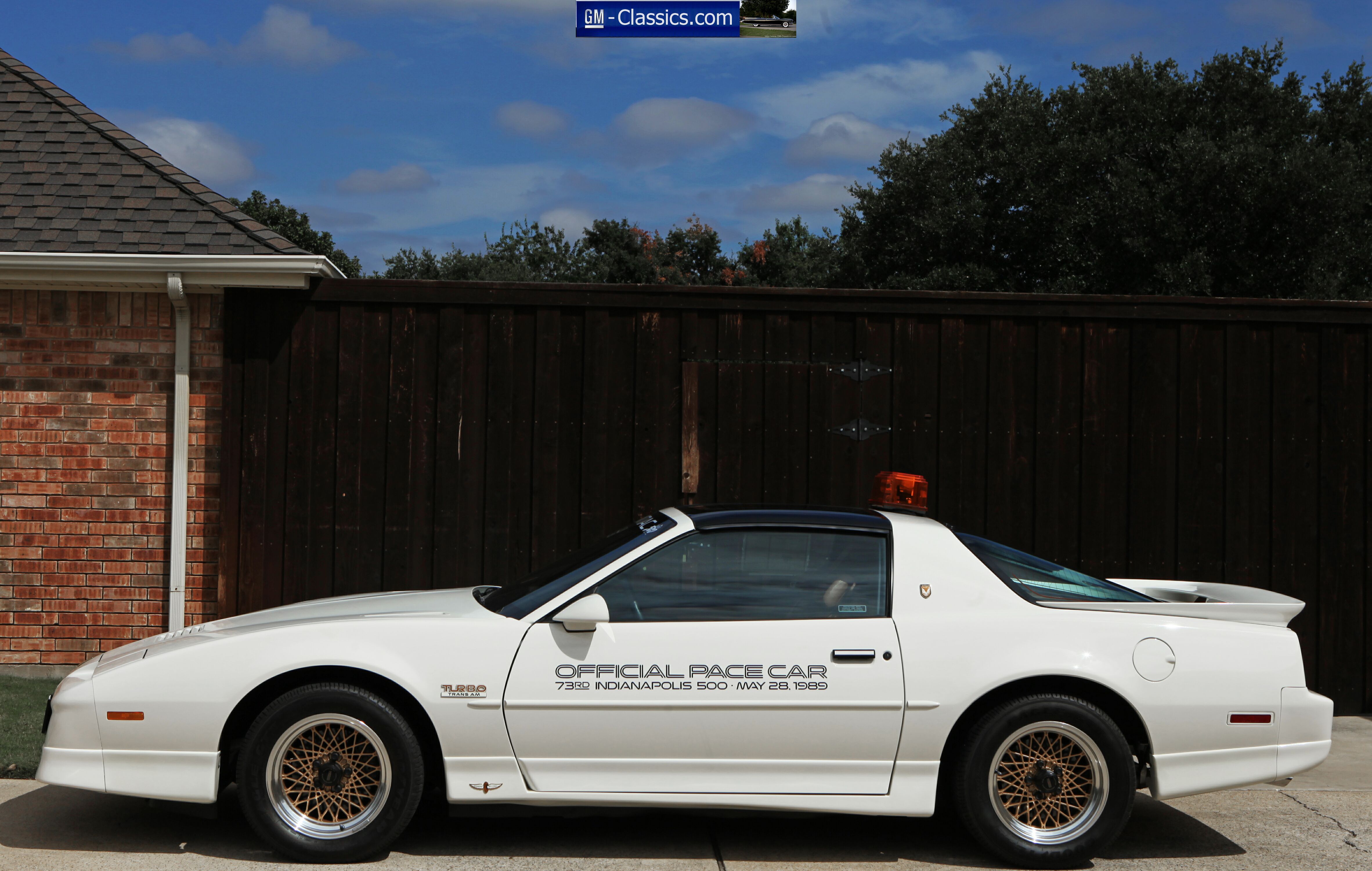

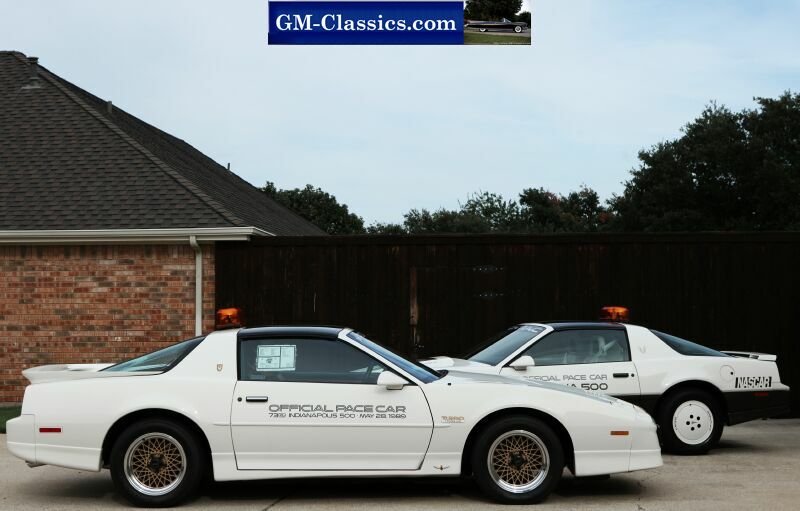

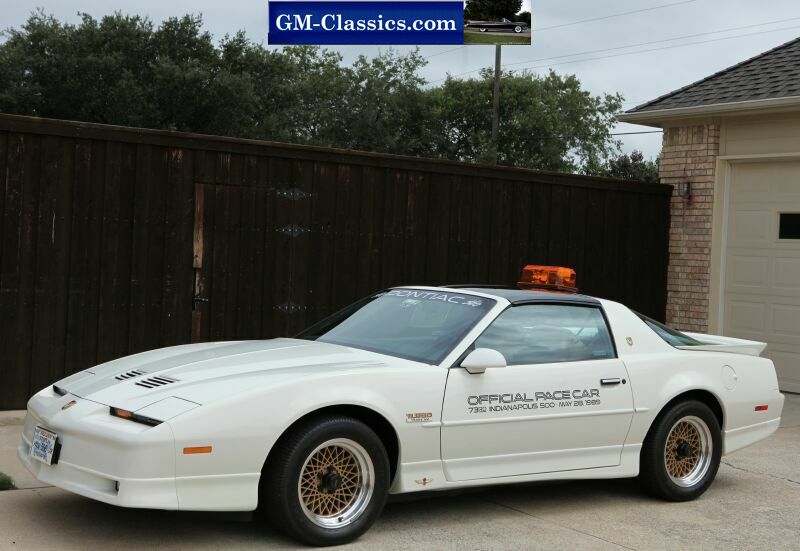

Shown with Brand New 83 Daytona Pace Car.

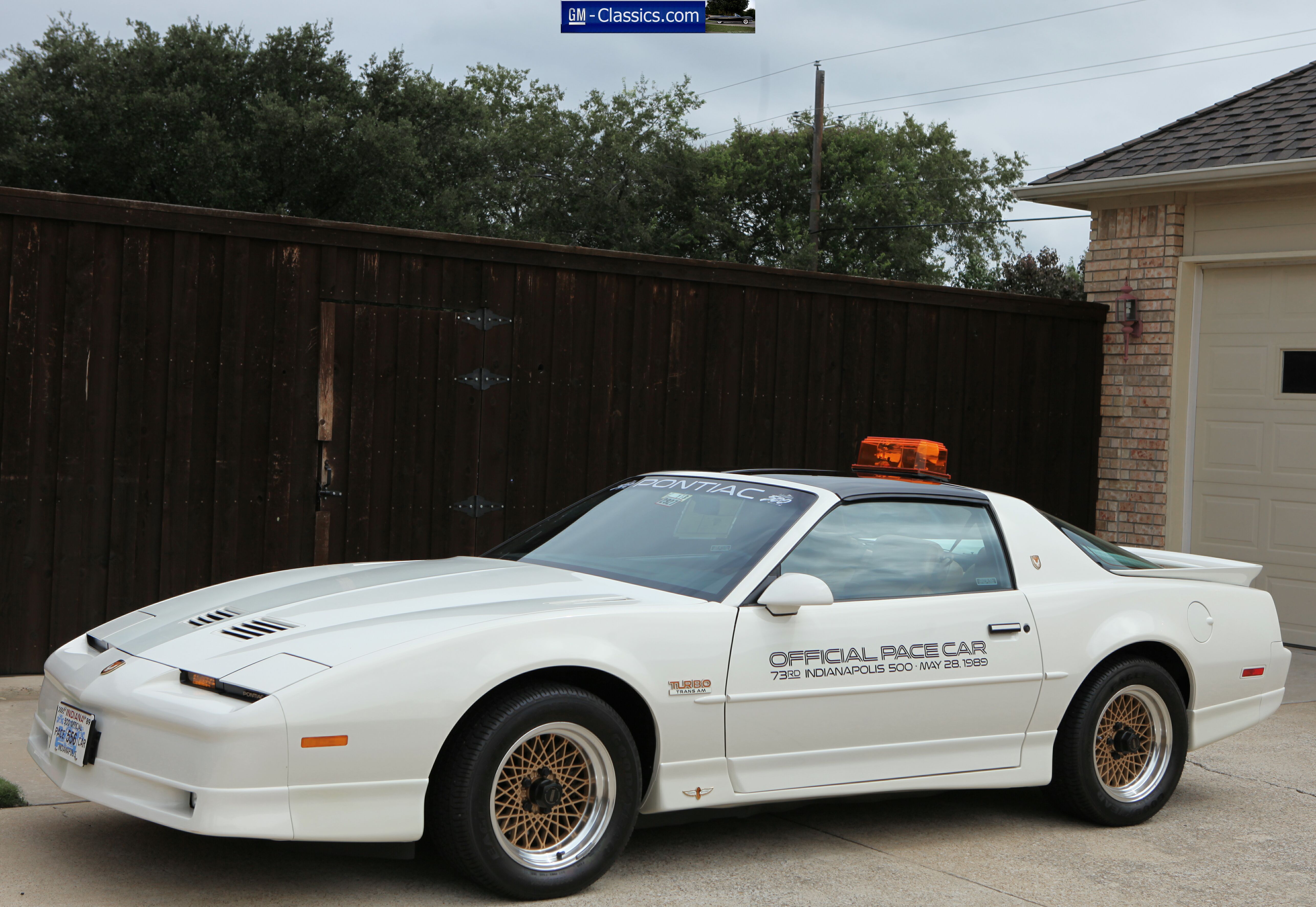

Note, both vintage pace car strobes are magnetic mount with felt under them. They are 100% unobtrusive to the car and 100% functional with cig light plug.

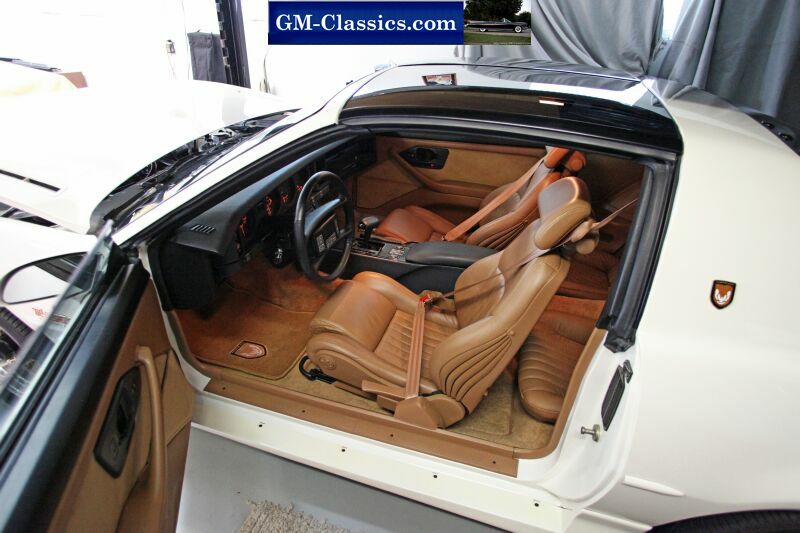

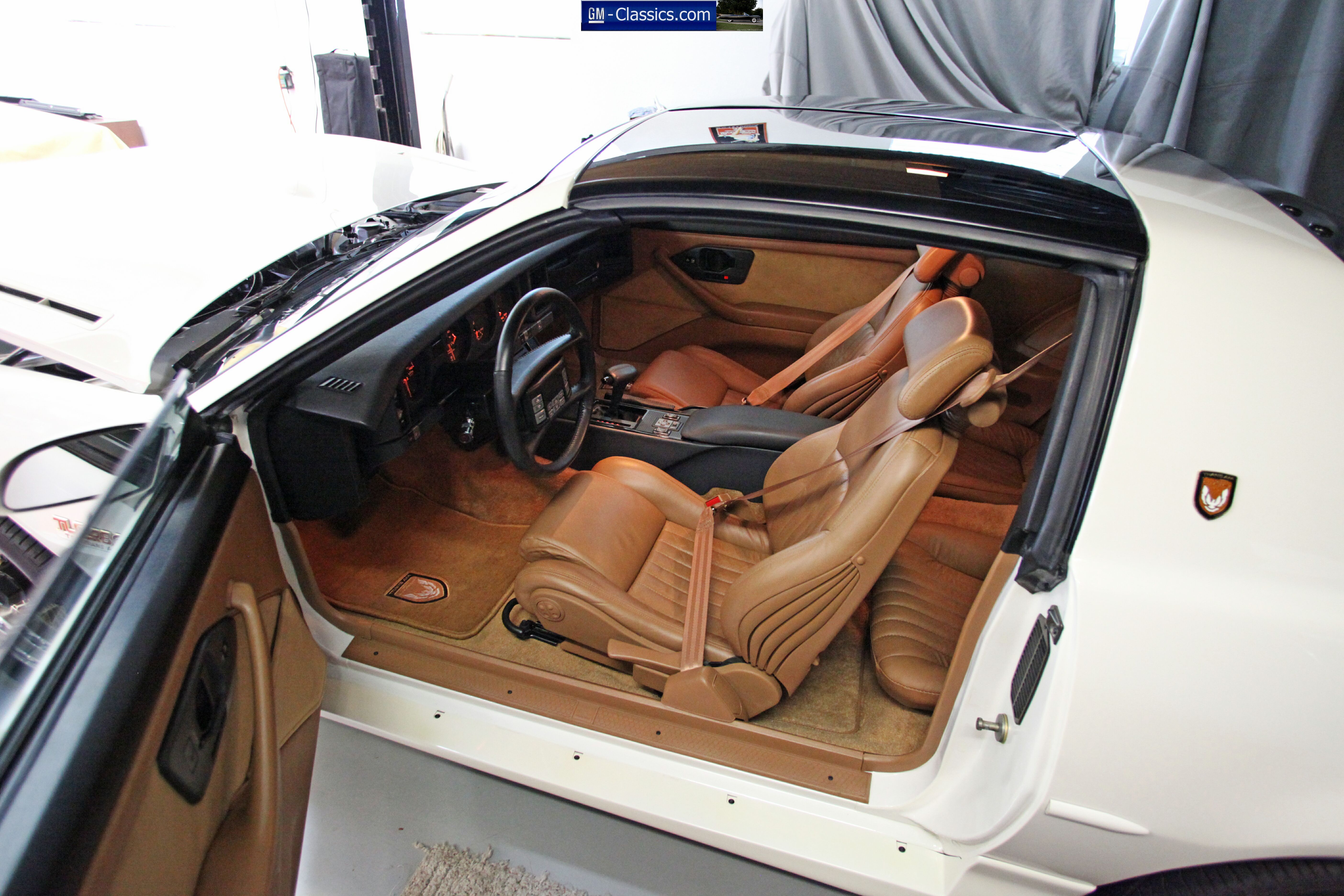

Not much to say on interiors. Just brand new.

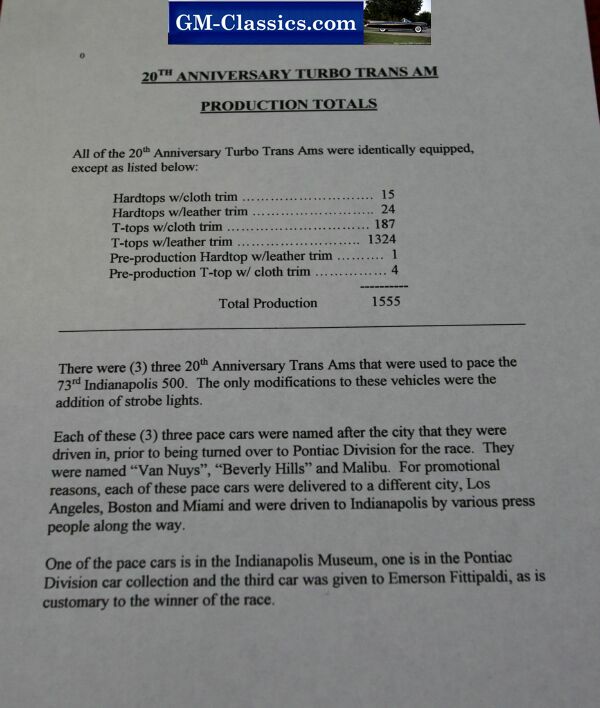

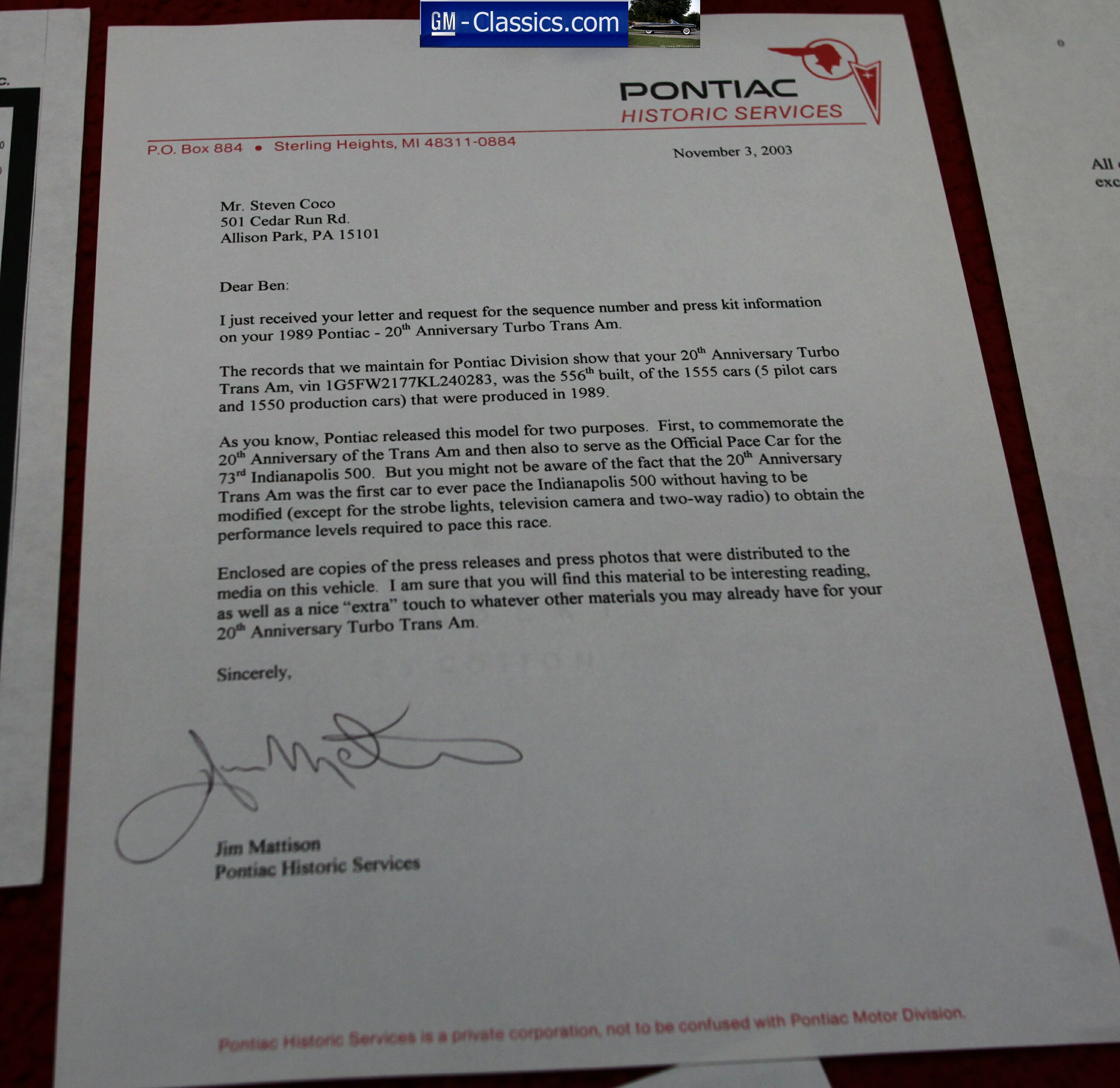

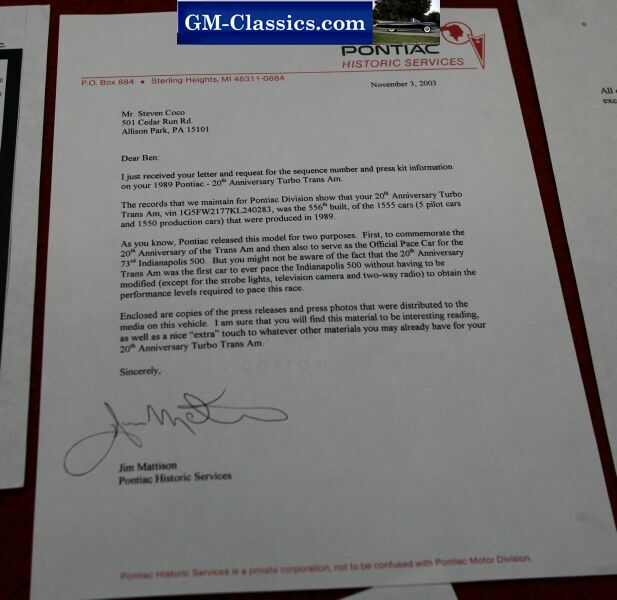

All the OEM paraphernalia and then some really rare PMD items too.
